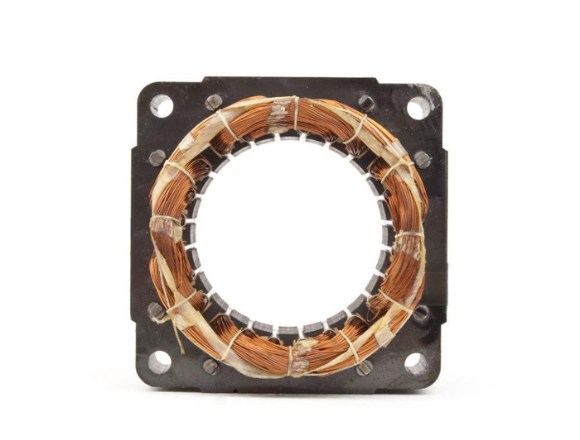

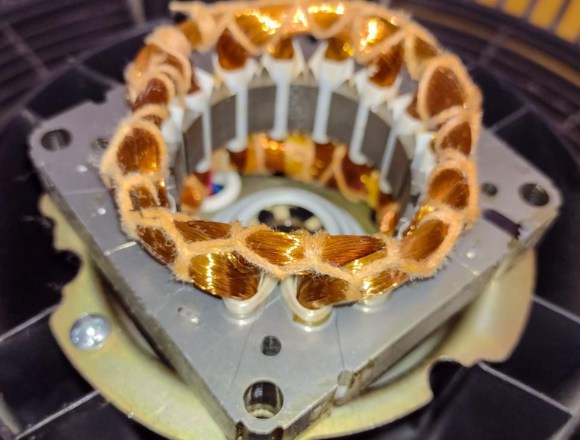

48 Inch Ceiling Fan Stator Lamination Stacks Manufacturer
The quiet efficiency and lasting durability of a quality 48-inch ceiling fan hinge on its high-quality stator lamination stack. Sino specializes in the precision manufacturing of these critical components, ensuring your ceiling fan motor achieves superior performance. Choosing Sino’s 48-inch ceiling fan stator laminations means selecting an exceptional experience of quiet comfort, energy savings, and durability.
The Sino Silicon Steel Advantage for Your 48-Inch Fan
For the heart of your fan’s motor, the choice of silicon steel (often called electrical steel) is paramount.We meticulously source our silicon steel, working with trusted suppliers who understand the stringent requirements for motor applications. For a 48-inch fan, a popular choice for bedrooms, studies, or smaller living areas, the balance between cost and performance is delicate. We guide our clients – fan manufacturers like you – through this.
Illustrative Table: Sino’s Recommended Silicon Steel Grades for 48-Inch Fans
(Note: Exact values depend on final design and specific processing. Sino customizes to your needs.)
Steel Grade | Typical Thickness (mm) Offered by Sino | Max Core Loss (W/kg @ 1.5T, 60Hz) – Target | Sino’s Focus for This Grade | Ideal Scenario for 48-Inch Fans |
M47 | 0.50 – 0.65 | Around 5.0 – 6.5 | Cost-Effective Performance | Entry-level, high-volume models |
M36 | 0.35 – 0.50 | Around 3.0 – 3.8 | Excellent Efficiency-Cost Balance | Mid-range to premium residential |
M27 | 0.35 – 0.50 | Around 2.5 – 3.3 | Maximum Efficiency, Ultra-Quiet | High-end, ENERGY STAR leaders |
Custom | As per client spec | Tailored to specific performance goals | Specialized Niche Applications | Unique design requirements |
Source: Sino Internal Material Standards, aligned with international benchmarks like NEMA and IEC.

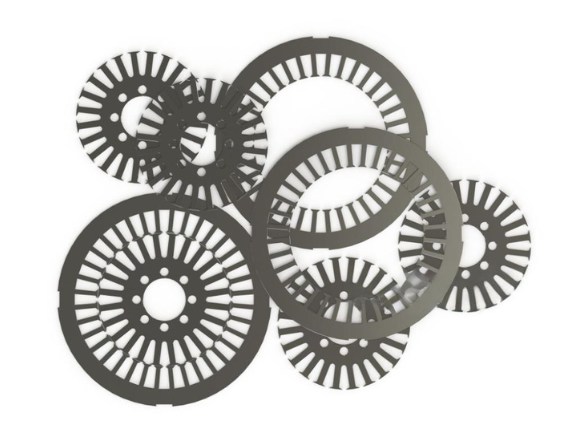

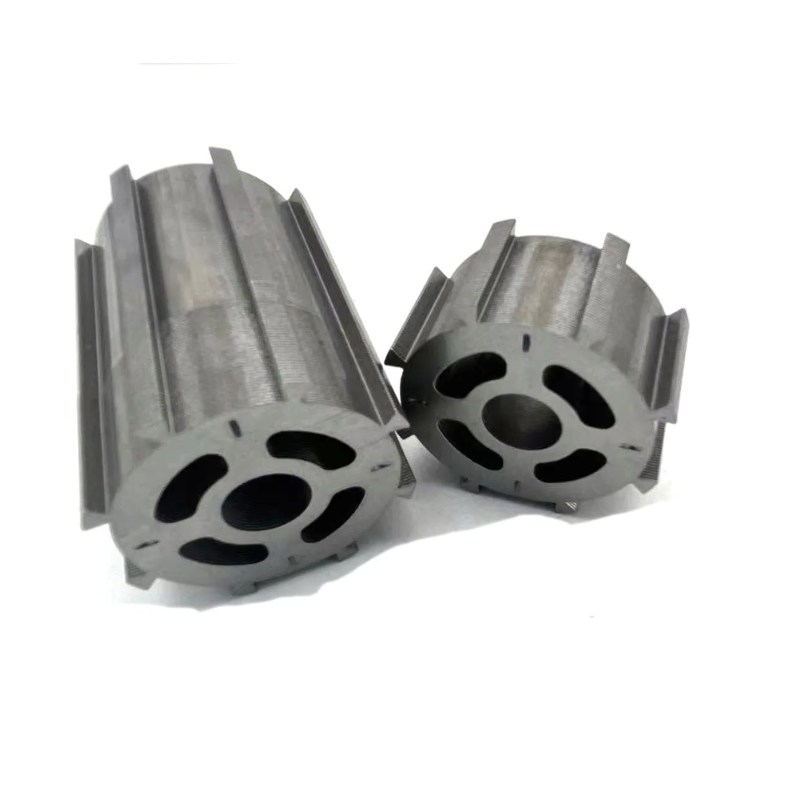

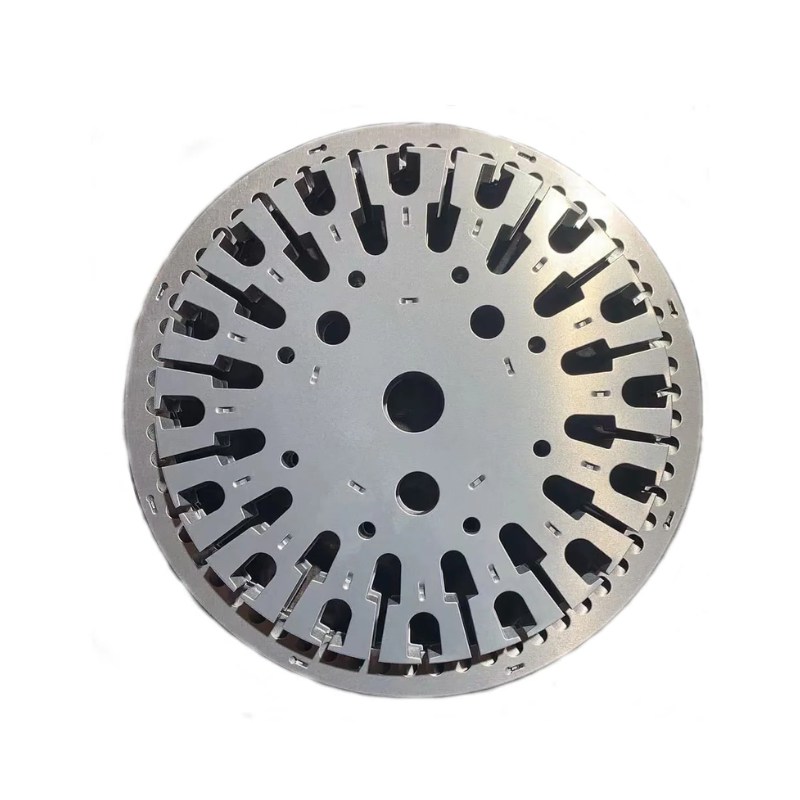

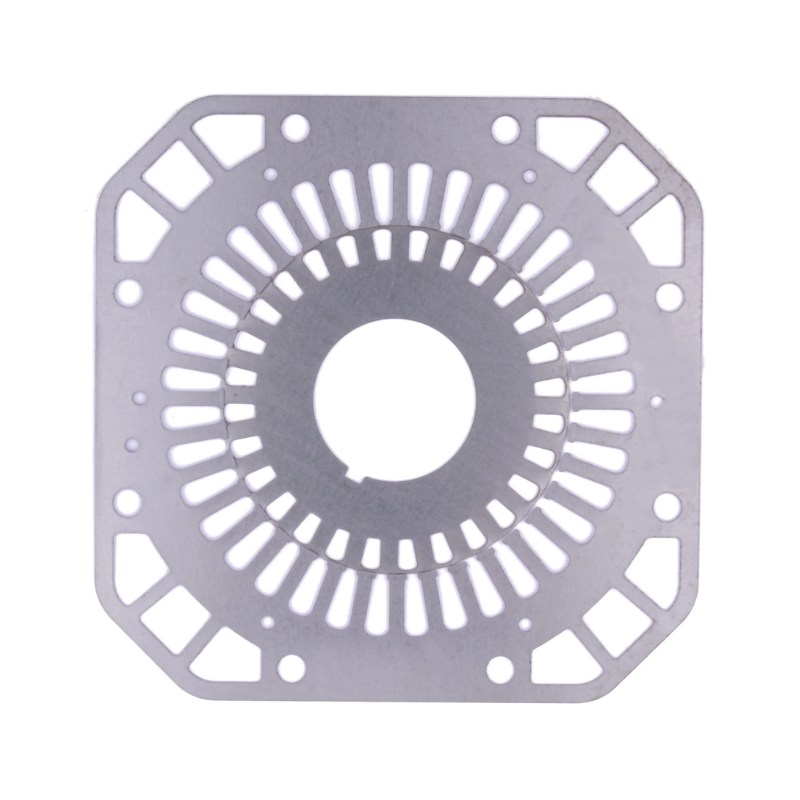

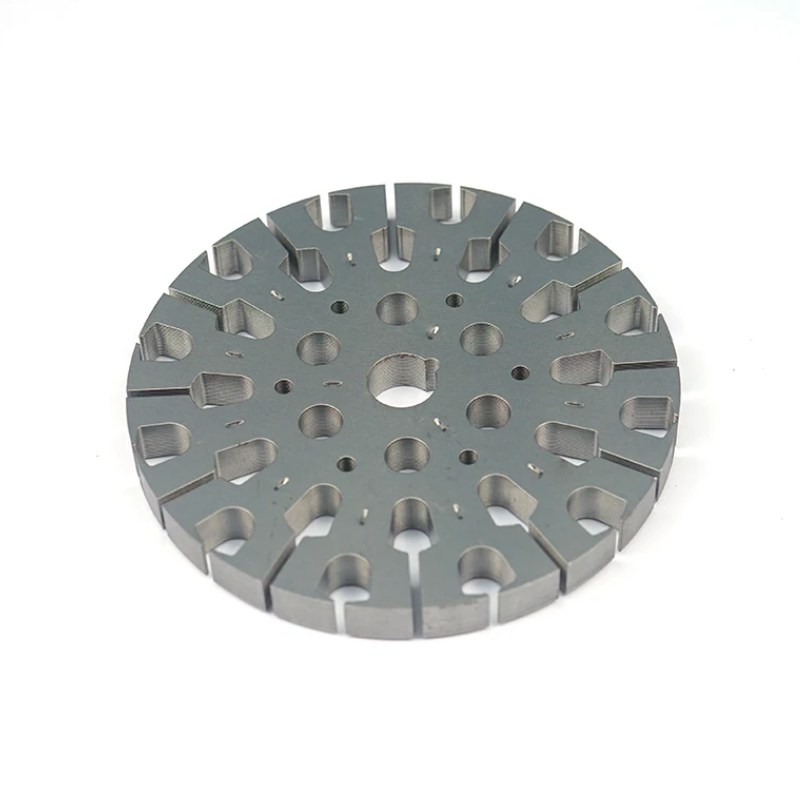

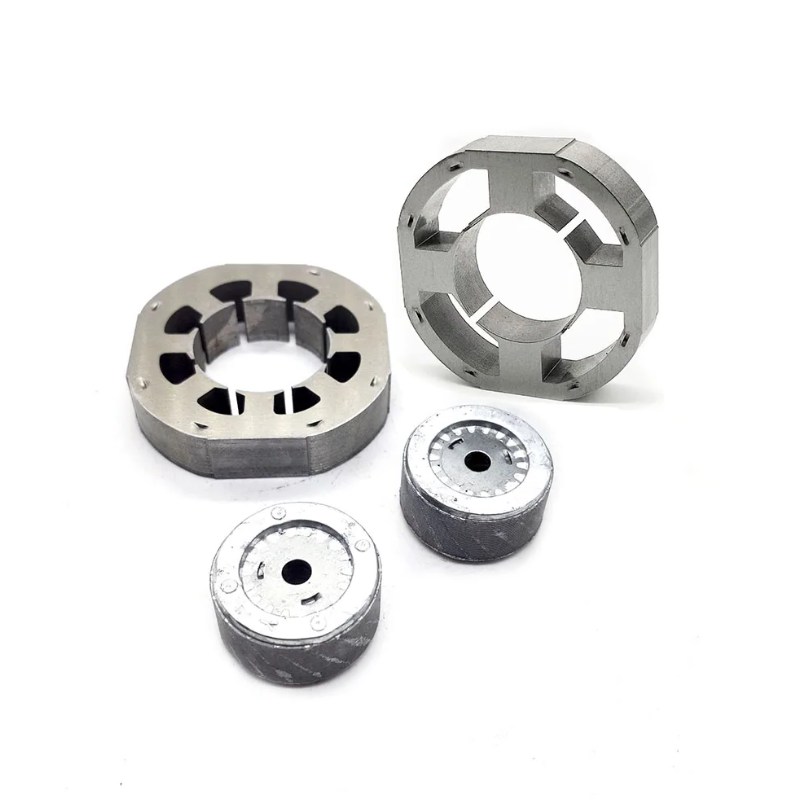

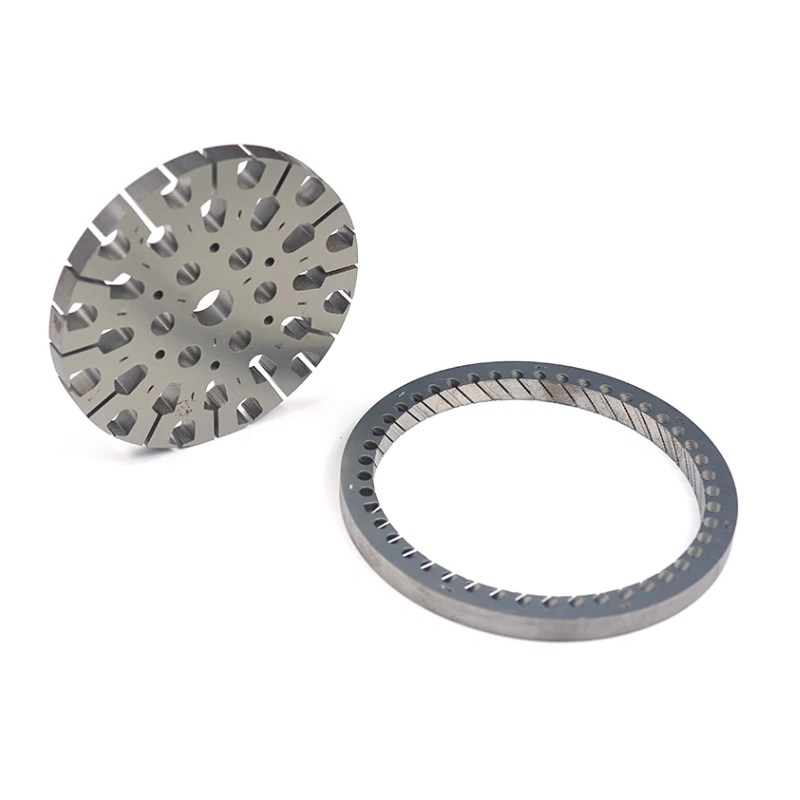

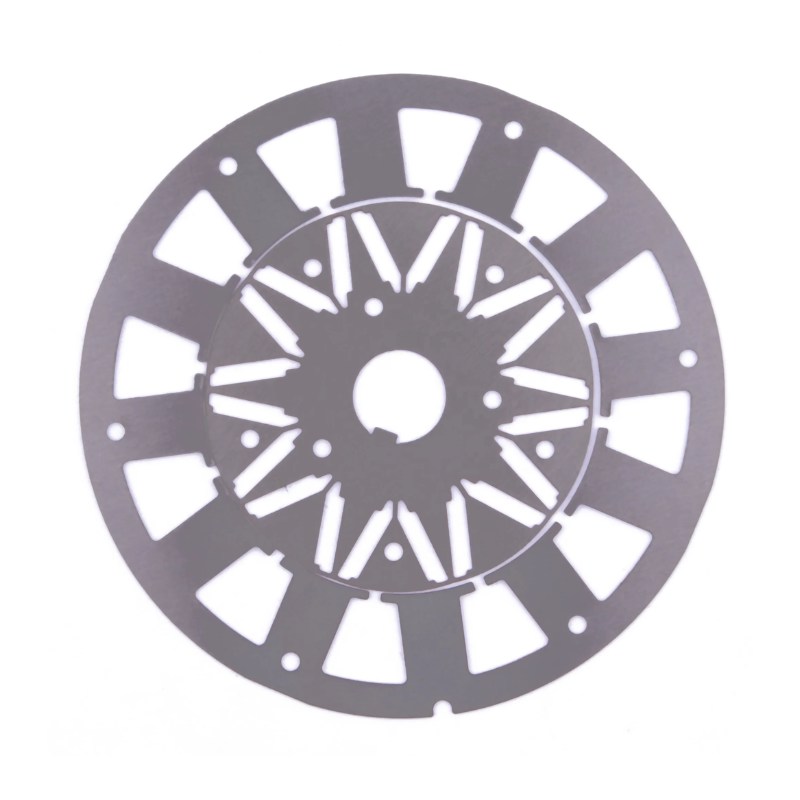

Our 48 Inch Ceiling Fan Stator Lamination Products
Sino's Precision in Lamination Thinness
Thinner laminations are your best friend when battling eddy current losses. At Sino, our advanced stamping and laser-cutting technologies allow us to produce laminations with exceptional uniformity, down to thicknesses like 0.35mm, which is often the sweet spot for highly efficient 48 inch ceiling fan stator laminations. While handling and processing these thinner materials requires more finesse, the energy savings and reduced motor heating are often well worth it, especially for fans designed to run for hours on end.
How Sino Tackles Core Losses in 48 Inch Ceiling Fan Stator Laminations
The true measure of a lamination stack’s quality boils down to one thing: minimizing core losses. Superior materials, optimal thickness, and meticulous manufacturing by Sino are your triple-threat against both hysteresis and eddy current losses. When you minimize core losses with Sino’s 48 inch ceiling fan stator laminations, you get a cascade of benefits. The motor runs cooler, which translates to a longer lifespan for the fan and less heat radiated into the room (crucial for a cooling device!). Energy consumption plummets, delighting environmentally conscious consumers and saving them money.
Manufacturing & Assembly: The Sino Seal of Quality
Having the best materials is only half the story. How those 48 inch ceiling fan stator laminations are actually made and put together is where the rubber truly meets the road.
1
Whether it’s high-speed stamping for high-volume orders or ultra-precise laser cutting for intricate prototypes or smaller batches of 48 inch ceiling fan stator laminations, Sino employs state-of-the-art technology. This minimizes burrs and mechanical stresses on the laminations, which can otherwise mess with their magnetic properties.
2
After stamping or cutting, mechanical stresses are inevitably introduced. Sino utilizes carefully controlled annealing (heat treatment) processes. This crucial step recrystallizes the steel, relieving stresses and restoring its optimal magnetic characteristics.
3
Each lamination needs a super-thin, yet incredibly robust, insulating coating. This prevents electrical shorting between layers, which would send eddy currents through the roof. Sino uses advanced coating techniques (like C5 or C6 coatings) and rigorous quality checks to ensure complete, uniform insulation integrity on every single lamination.
3

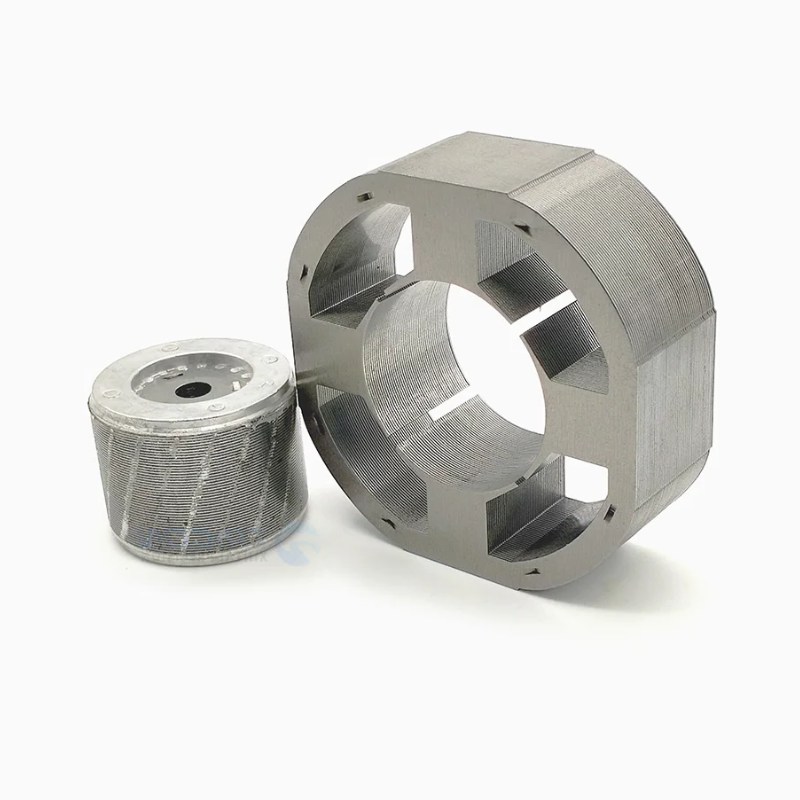

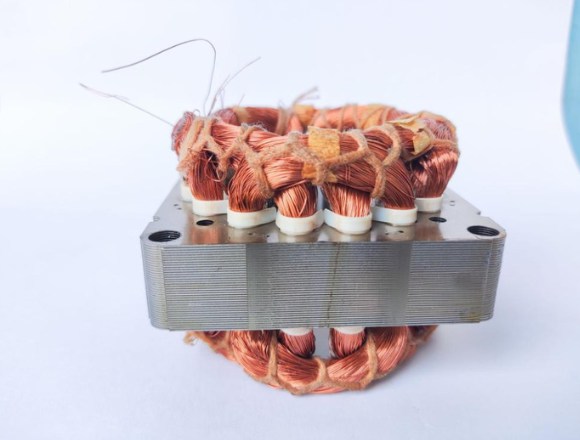

How the individual laminations are stacked and secured is vital. Our automated stacking processes, combined with options for robust interlocking (creating a self-supporting stack) or precision welding (for specific structural needs), ensure a solid, dimensionally accurate stator core. This precision directly impacts motor assembly downstream and even the final air gap in the motor, a critical parameter for performance.
Sino’s Tailored Solutions
At Sino, we understand that one size rarely fits all, especially in the competitive world of ceiling fan design. That’s why we don’t just offer off-the-shelf 48 inch ceiling fan stator laminations. We partner with you.
Customization is King
Do you have a unique motor topology in mind? Need a specific slot design to optimize winding? Looking for a particular outer diameter to fit a sleek new housing? Bring it on. Our engineering team thrives on collaboration, working with your designers to develop and produce custom lamination stacks that perfectly match your fan’s performance goals and aesthetic vision.
Beyond Residential
While 48-inch fans are a staple in homes (bedrooms, kitchens, home offices), their utility extends to light commercial scenarios – think boutique hotel rooms, small cafes, or office breakout areas. Sino can tailor lamination properties for the duty cycle and noise requirements of these varied environments.
Prototyping to Production
Got a groundbreaking idea for a new 48-inch fan? Sino can support you from rapid prototyping of new lamination designs to full-scale mass production, ensuring quality and consistency every step of the way.
The Sino Difference: It's More Than Just Metal
Choosing Sino for your 48 inch ceiling fan stator laminations means you’re getting more than just a component supplier; you’re gaining a dedicated partner.
Unwavering Quality Control
From raw material inspection to final stack dimension checks, quality is embedded in our DNA. ISO certifications are just the starting point.
Continuous R&D
We're constantly exploring new materials, improved insulation coatings, and more efficient manufacturing techniques to keep you ahead of the curve.
Responsive Customer Support
Our team is here to answer your questions, solve challenges, and ensure a smooth supply chain.
A Commitment to a Greener Tomorrow
By focusing on high-efficiency laminations, Sino helps you build fans that consume less energy, contributing to a more sustainable future.
Choose Sino for Your 48 Inch Ceiling Fan Stator Laminations
So, when you’re designing or manufacturing your next line of 48-inch ceiling fans, remember what’s at the core. Don’t let subpar laminations be the weak link that compromises performance, efficiency, or your brand’s reputation.
Partner with Sino
Let us provide the high-quality, precision-engineered 48 inch ceiling fan stator laminations that will make your fans spin smoother, quieter, and more efficiently for years to come. Reach out to our team today, and let’s discuss how we can help you build a truly exceptional ceiling fan. Your customers will feel the difference with every silent, cooling breeze.
