Lamination Stacks Steel Annealing

Sino privide Expert Lamination Steel Annealing. Unlock peak performance in your electrical devices. Our precision annealing enhances magnetic properties, slashes core losses, and boosts energy efficiency for your annealed laminated steel. Achieve superior results with Sino’s tailored thermal processing. Get a competitive edge.

Sino's Edge: Unlocking Peak Performance with Expert Lamination Steel Annealing

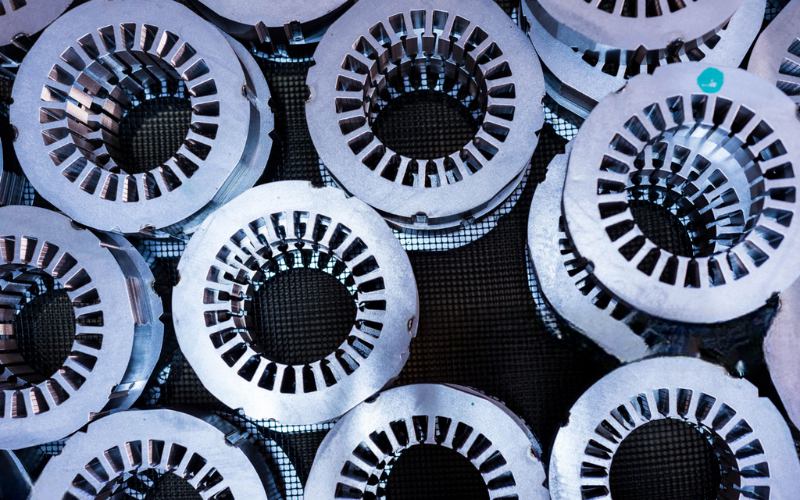

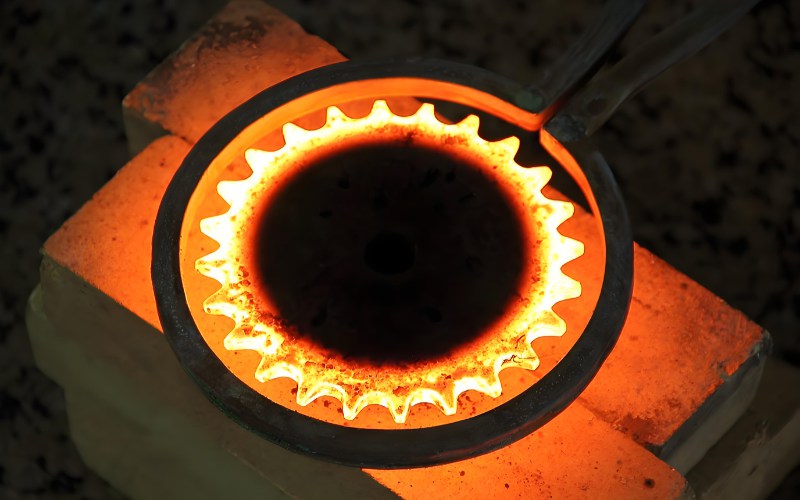

At Sino, our annealing lamination steel protocols involve heating the stacked or individual laminations to precise temperatures, holding them there for a specific duration, and then cooling them under tightly controlled conditions. This thermal energy allows the atoms in the steel to wiggle free from their strained positions, rearrange themselves into a more orderly, lower-energy state, and effectively smooth out those microscopic roadblocks. It’s a process of metallurgical relaxation that’s absolutely fundamental.

For instance, we recently worked with a client developing a high-speed compressor. Their initial prototypes, using non-annealed laminations, suffered from excessive vibration and heat. After implementing Sino’s tailored lamination steel annealing cycle, the reduction in mechanical stress not only quieted the compressor but also significantly improved its magnetic efficiency, leading to a cooler and more reliable unit.

Beefing Up Magnetic Performance: Sino's Recipe for Energy Savings

Beyond just making the steel feel more relaxed, Sino’s precision lamination steel annealing directly translates into a hefty boost in magnetic performance, paving the way for substantial energy savings in your final product. This is where the rubber really meets the road for electrical applications, and it’s an area where our expertise shines. Let’s break down what improves:

Permeability Soars: Think of magnetic permeability as how inviting a material is to magnetic flux. The more permeable, the less energy it takes to establish a given magnetic field. Cold working, as we’ve discussed, really puts a damper on permeability. However, after a Sino annealing cycle, designed specifically for your chosen grade of electrical steel, we see permeability values shoot up. This means your device’s core can be magnetized more easily, demanding less current and, therefore, less energy.
Coercivity Plummets: Coercivity is the material’s magnetic “memory” or stubbornness—how much reverse magnetic field you need to apply to bring its magnetization back to zero after it’s been saturated. For AC devices where the magnetic field is constantly flipping (think motors, transformers, alternators), high coercivity is a villain. It means more energy is lost as heat during each cycle of magnetization and demagnetization. This loss is known as hysteresis loss. Our lamination steel annealing techniques are fine-tuned to significantly slash coercivity, making your annealed laminated steel far more efficient in dynamic scenarios.
Core Losses Take a Nosedive: This is the bottom line for many of our clients. Core losses (or iron losses) are the sum of hysteresis losses and eddy current losses. By drastically reducing internal stresses and optimizing the grain structure, Sino’s annealing processes make a huge dent in hysteresis losses. While eddy current losses are primarily tackled by using thin laminations and ensuring good interlaminar insulation, a properly annealed material with superior domain behavior also contributes to lower overall losses.

Typical Property Improvements with Sino Annealing

To give you a clearer picture, consider the typical improvements we observe at Sino when processing a common non-oriented electrical steel used in motors:

Property	As-Stamped (Pre-Sino Anneal)	Sino-Annealed Lamination Steel	Unit	Sino’s Impact on Your Design
Core Loss (e.g., P1.5/50)*	4.0 – 6.5 W/kg	1.8 – 2.8 W/kg	W/kg	Drastically improved efficiency, less heat
Max. Permeability (µmax)	700 – 1400	3500 – 7000	(dimensionless)	Easier magnetization, potential for smaller cores
Coercivity (Hc)	100 – 180 A/m	35 – 75 A/m	A/m	Reduced hysteresis loss, better AC performance
Hardness (approx.)	~190-240 HV	~130-170 HV	HV (Vickers)	Softer material, indicative of magnetic softness

\P1.5/50 denotes core loss at 1.5 Tesla magnetic flux density and 50 Hz frequency. These are illustrative values; actuals depend on the specific steel grade and processing.*

We had a fascinating case with a manufacturer of industrial fans. Their existing design was functional but lagged behind competitors in energy ratings. By switching to Sino for their annealed laminated steel cores and allowing us to optimize the lamination steel annealing process for their specific motor lamination profile, they achieved a 7% reduction in overall motor losses.

This not only boosted their energy rating but also allowed them to market a “greener” product, a significant win in today’s environmentally conscious market. You’ll find ample technical data from esteemed steel producers like Nippon Steel or Posco, and in research publications like the IEEE Transactions on Magnetics or the Journal of Applied Physics, all underscoring these dramatic improvements post-annealing.

Working Wonders on Internal Structure: Sino’s Microscopic Mastery

Microscopic Engineering for Magnetic Performance

Sino’s lamination steel annealing performs microscopic engineering on the steel’s internal grain structure. Precisely controlled annealing cycles, primarily through recrystallization and managed grain growth, are pivotal for achieving top-tier magnetic properties.

Recrystallization: Resetting the Microstructure

Stamping deforms the steel’s existing grains, elongating them and introducing stress-inducing defects. During annealing’s heating phase, new, tiny, strain-free grains form within this deformed matrix—a process called recrystallization. This effectively resets the steel’s microstructure.

Controlled Grain Growth for Lower Hysteresis Loss Following recrystallization, holding the steel at the correct temperature and duration—a core aspect of Sino’s expertise—allows these new, stress-free grains to grow. For many soft magnetic materials, particularly non-oriented electrical steels, larger grains are beneficial. Grain boundaries hinder magnetic domain wall movement; thus, fewer, larger grains mean fewer obstacles, facilitating easier domain wall motion and reducing hysteresis loss.

Tailored Annealing: Achieving Optimal Grain Size Achieving the optimal grain size is a delicate balance, as excessively large grains can negatively impact other properties, especially at high frequencies. Sino’s metallurgical expertise avoids a one-size-fits-all approach. Annealing schedules are meticulously tailored to the specific electrical steel grade, lamination thickness, and end-use (e.g., a 400 Hz generator versus a 50 Hz transformer). Temperature, soak time, and furnace atmosphere are fine-tuned to achieve the ideal grain size and texture, a level of customization that distinguishes Sino.

The Sino Difference: It’s More Than Just a Bake-Off

There’s a universe of difference between just “heating steel” and the art and science of lamination steel annealing as practiced at Sino. Our capability isn’t just about having furnaces; it’s about possessing the deep process knowledge, state-of-the-art equipment, and rigorous quality control to consistently deliver perfectly annealed laminated steel.

Here are a few things that make Sino’s approach stand out:

Atmosphere Control is King: The environment inside the furnace during annealing is massively important. Simply heating steel in air will lead to oxidation, forming a detrimental surface layer that can degrade magnetic properties and interfere with interlaminar insulation. At Sino, we utilize precisely controlled furnace atmospheres. This often involves using reducing gases (like a hydrogen-nitrogen mix) or inert gases (like pure nitrogen or argon) to prevent oxidation. For certain grades, a slightly decarburizing atmosphere can even be beneficial, removing trace amounts of carbon that can impede magnetic performance and contribute to magnetic aging. Our systems continuously monitor and adjust the atmosphere composition, ensuring optimal conditions throughout the entire lamination steel annealing cycle.

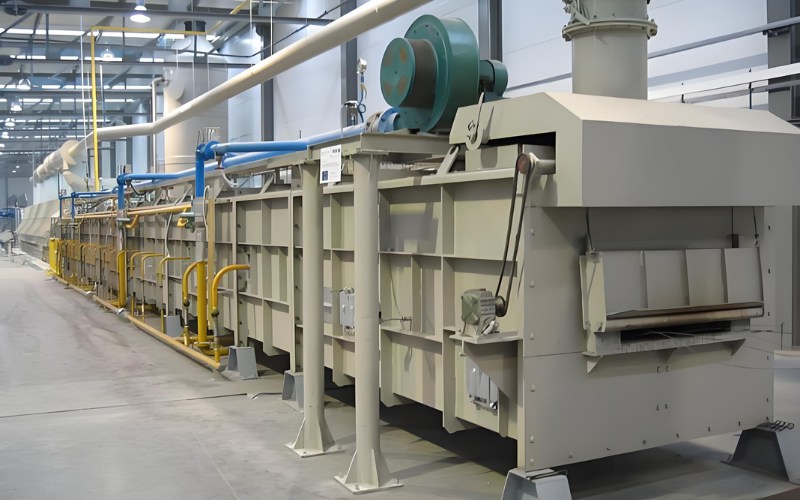

Temperature Uniformity and Precision: Hot spots or cold spots within a furnace load can lead to inconsistent annealing and, therefore, variable magnetic properties across a batch of laminations. Sino invests in modern furnaces with advanced heating element designs and multiple control zones to ensure exceptional temperature uniformity. Our thermocouples are regularly calibrated, and our control systems allow for precise ramp rates (how quickly the temperature rises), soak times (how long it’s held at peak temperature), and cooling rates. These aren’t just set-and-forget parameters; they are active points of control.
Customized Thermal Profiles: As mentioned, different steels and different final uses demand different annealing treatments. We don’t rely on generic recipes. Sino’s engineers and metallurgists work to develop and validate specific thermal profiles for the vast array of electrical steel grades on the market. Whether it’s a low-carbon steel for simple relays or a sophisticated high-silicon, thin-gauge material for high-frequency power supplies, we have the expertise to optimize the annealing lamination steel process.
Handling and Stacking Expertise: How laminations are loaded into the furnace matters. Proper support is needed to prevent distortion at high temperatures, especially for thin or complex shapes. Sino has developed best practices for stacking and loading to ensure your laminations come out of the furnace as dimensionally accurate as they went in, with their magnetic properties fully revitalized.
Quality Verification: We don’t just assume the process worked. Sino implements quality checks, which can include metallurgical analysis of grain structure, hardness testing, and, where appropriate, magnetic property testing on sample cores annealed alongside production batches. This commitment to verification gives you peace of mind that your annealed laminated steel meets the required specifications.

One client, a producer of specialized servo motors requiring incredibly precise and consistent performance, was struggling with batch-to-batch variability from their previous heat treater. After switching to Sino, they reported a dramatic improvement in the consistency of their motor torque characteristics and a reduction in assembly line rejections, all thanks to the rigor we apply to every step of the lamination steel annealing process.

Real-World Impact: Sino’s Annealed Laminated Steel in Action

The theoretical benefits are great, but what does this mean for actual products out in the wild? Let’s look at a few scenarios where Sino’s lamination steel annealing makes a tangible difference:

High-Efficiency Electric Vehicle (EV) Drivetrains: The push for longer range and faster charging in EVs puts immense pressure on motor efficiency. Every watt lost in the motor core is a watt not going to the wheels. Sino has partnered with EV component suppliers to provide annealed laminated steel stator and rotor stacks that exhibit exceptionally low core losses, even at the higher operating frequencies common in modern EV motors. Our ability to fine-tune the annealing for specific high-grade, thin-gauge silicon steels (like 0.20mm or 0.27mm grades) helps our clients squeeze out those extra miles of range and reduce the thermal load on the motor, simplifying cooling system requirements. The result is a quieter, more efficient, and more reliable electric powertrain.
Quiet and Cool Appliance Motors: Think about your refrigerator, washing machine, or air conditioner. Consumers demand quiet operation and low energy consumption. The motors in these appliances often run for many hours a day. Sino supplies annealed laminated steel for these motor cores, ensuring that the lamination steel annealing process minimizes magnetic noise (magnetostriction-induced hum) and keeps core losses low. This not only contributes to a quieter home environment but also helps manufacturers meet increasingly stringent energy efficiency standards like Energy Star. A leading appliance maker saw a noticeable 2 dB reduction in the operational noise of their flagship dishwasher model after optimizing the motor core annealing with Sino.
Robust Industrial Transformers: In the world of power generation and distribution, transformers are unsung workhorses. Their efficiency and reliability are paramount. Large power transformers can have cores weighing many tons, and even a small percentage improvement in efficiency translates to massive energy savings over the transformer’s decades-long lifespan. Sino provides precisely annealed laminated steel – often grain-oriented electrical steel (GOES) for larger units – ensuring low no-load losses and high permeability. Our controlled annealing atmospheres are particularly critical for GOES to preserve the delicate surface insulation (like forsterite coatings) and optimize the material’s directional magnetic properties.
Precision in Medical and Scientific Instruments: Beyond the big power applications, many specialized devices rely on exquisitely controlled magnetic fields. Think of components in MRI machines, scientific analyzers, or precision actuators. For these scenarios, the consistency and predictability of the magnetic material are absolutely critical. Sino’s meticulous approach to lamination steel annealing ensures that the annealed laminated steel components we produce deliver the exact magnetic response required, batch after batch, enabling the accuracy and reliability these high-stakes instruments demand.

Why Entrust Your Lamination Steel Annealing to Sino?

When it comes down to it, achieving the full magnetic potential of your electrical steel laminations isn’t an accident; it’s the result of specialized knowledge, careful execution, and a commitment to quality. That’s what Sino brings to the table.

Deep Expertise: We live and breathe lamination steel annealing. Our team understands the metallurgy, the physics, and the practical implications for your designs.
Tailored Solutions: We don’t do cookie-cutter. We work with you to understand your specific material, design, and performance goals to deliver an optimized annealing process.
Consistent Quality: Our process controls, advanced equipment, and quality verification steps ensure that you get reliable, repeatable results, every single time.
Partnership Approach: We see ourselves as an extension of your design and manufacturing team, providing the critical thermal processing link that turns good laminations into great magnetic cores.

The journey from a coil of electrical steel to a high-performance magnetic core is complex. Stamping or cutting is just one part of it. Without expert lamination steel annealing, you’re leaving performance, efficiency, and reliability on the table.

Are you ready to unlock the true performance hidden within your lamination designs? Don’t let suboptimal thermal processing compromise your innovation. Talk to the specialists at Sino about your lamination steel annealing requirements. Let us show you how our precision and expertise can elevate your products, reduce energy losses, and give you a genuine competitive advantage. Your electrical devices deserve the best, and that starts with perfectly annealed laminated steel from Sino.

Let Sino's Lamination Stacks Empower Your Project!
