How to Compress Air: Your Simple Guide to a Powerful Compressed Air System

A compressed air system is made of several machines. They all work as a team to power tools and equipment. You can think of it like the electricity or water used in a factory. It is so important that many people call it the “fourth utility.” This guide is your introduction to compressed air. We will explain everything in simple words. You will find out how an air compressor works. You will also learn about the different kinds and how to take good care of your compressed air system. Reading this will help you save money, stop problems before they happen, and make your work go more smoothly.

What Is a Compressed Air System and How Does It Work?

A compressed air system is a full setup that makes and uses pressurized air. It is more than just a single machine. The air compressor is the most important part of the system. This machine does the main job. It pulls in normal air from around us. Then, it uses power to compress it. To compress just means to squeeze something into a smaller area. When you compress air, it stores a lot of energy inside. This stored energy can then be used to do work.

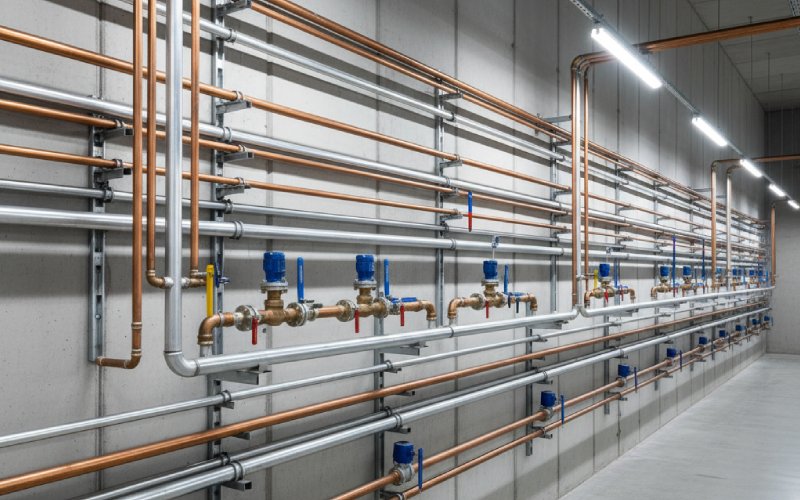

The entire system is made of three main parts. The first part is the air compressor itself. It does the hard work to compress the air. The second part is for air storage, which is usually an air receiver tank. This tank keeps the compressed air safe until you are ready to use it. The third part is the distribution system. This is a set of pipes and hoses. They move the compressed air from the tank to the tools and machines that need it. A good compressed air system gives you clean, dry air. It also provides the air at the correct pressure. This makes it a trustworthy power source, just like electricity, natural gas, and water. A good compressed air system is very important for many types of factory work.

Why Do So many Workplaces Depend on an Air Compressor?

Many businesses depend on compressed air to do their work. Using compressed air is safe and clean. It can also be used for many different jobs. You can find it in small workshops and also in giant factories. For example, car repair shops use pneumatic tools like impact wrenches to change tires. A flow of compressed air gives these tools their power. Factories use compressed air for their production lines. It can run machinery. It can also move parts using automated valves and help with moving materials around.

Food and drink factories often use compressed air. This is because it can be made very clean. When it is very important for the air to be pure, they use special oil-free compressors. This makes sure that no contaminant from the compressor mixes with the product. Other industrial uses are spray painting, sandblasting, and running large factory processes. Because a compressed air system is so reliable, these businesses can keep working. They do not have to worry about expensive downtime. The air compressor is a real key player.

How Does a Compressor Squeeze Air?

An air compressor is a mechanical device. It pulls in regular air from the atmosphere. Then, it makes the air’s pressure higher. The main idea is very simple. Inside the compressor, there is a moving part. An electric motor makes this part move. This moving part pushes air into a small space. This is how the air gets compressed. There are a few different ways to do this. That is why there are so many types of air compressors.

Most of the compressors you will see are “positive displacement” compressors. This is a technical name. It just means the compressor traps some air. Then, it makes the space that the air is in smaller. Think about squeezing a balloon. When you squeeze it, the air inside is forced into a smaller area, and the pressure builds up. A compressor does this same thing over and over, very fast. First, the air is pulled in. Then it is trapped. Next, it is squeezed to compress it. Finally, it is sent out through a discharge pipe. From there, it goes to a storage tank. This action of compression is what gives the air its power.

What Are the Main Kinds of Air Compressors You Can Pick From?

There are many kinds of air compressors. Most of them can be put into two main groups. The ones you see most often are positive displacement compressors. These include reciprocating compressors and rotary screw compressors. If you know the difference, it will help you choose the right air compressor for your job.

• Reciprocating (Piston) Compressors: These are very popular, especially for smaller workshops. A piston compressor works a lot like a car’s engine. A piston moves up and down inside a cylinder. When it moves down, it sucks air in. When it moves up, it squeezes and compresses the air. They are simple machines and do not cost as much to buy. To reciprocate means to move back and forth.
• Rotary Screw Compressors: These are often used for bigger jobs in factories that need a lot of air all day. A rotary screw compressor uses two big, turning screws called rotors. These rotors fit together. As they spin, they trap air in the spaces between them. This space gets smaller as the air travels along the rotors. That is how this compressor is able to compress the air. A rotary screw air compressor is known because it can push out a lot of air.
• Rotary Vane Compressors: This is another kind of rotary compressor. It uses a spinning rotor that has slots in it. Vanes slide in and out of these slots. As the rotor turns, the vanes trap air and compress it. Rotary vane compressors are known for lasting a very long time.

Reciprocating Piston vs. Rotary Screw: Which Compressor is a Better Fit?

Picking between a piston compressor and a rotary screw compressor depends on your job. One is not always better than the other. The right compressor type for you is based on how much airflow you need, the pressure you need, and how often you will be using compressed air. A piston compressor is usually a smart pick for smaller jobs.

A rotary screw compressor is made for running without stopping. If you need a compressor to work all day long to power your factory, a rotary screw is an excellent choice. They save more energy and give you a steady airflow that does not come in bursts. A reciprocating compressor, with its piston that must reciprocate, is a better fit for jobs where you need air on and off. It will turn on to fill the air tanks and then turn itself off. A rotary screw compressor is a more advanced piece of machinery.

Here is a simple table to help you compare them:

What Are the Other Main Parts of a Compressed Air System?

A good compressed air system has more parts than just the air compressor. You need several other system components. These parts help make sure the air is clean, dry, and ready for you to use. If you do not have these parts, your expensive machines could get broken.

The first important part is the air receiver tank, which is also called a storage tank. The compressor fills this tank with air. This builds up a ready supply of compressed air. It also lets the air cool down and helps some water settle out at the bottom. The second important part is the air dryer. When you compress air, the water mist in the air turns into drops of water. This water is called condensate. An air dryer is a machine that takes out this water. Air that is wet can cause your pipes and pneumatic tools to rust. The third important part is the filtration system. Air filters take out dirt, dust, and oil from the compressed air. This makes sure that only clean air gets to your tools. Every compressed air system needs to have these parts.

Why is Clean Air Quality So Needed for Your Machines?

The quality of your compressed air is very, very important. Air that has poor quality can cause big problems. The three main things that create problems are dirt, water, and oil. These are called contaminants. A contaminant is simply anything that should not be in the air. If these get inside your pneumatic tools or other machinery, they can cause a lot of damage. This can cause your work to stop, which costs money.

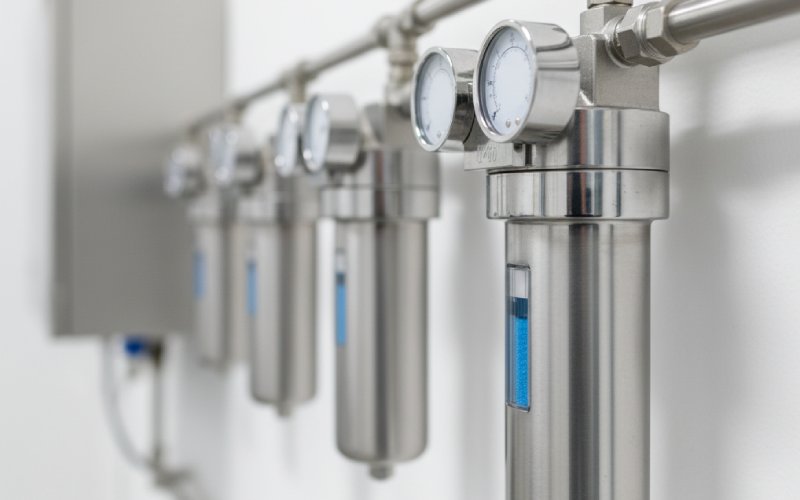

Water, or condensate, is a major problem. It can make the inside of your pipes and tools get rusty. Bits of dirt can block up tiny pathways in your tools and automated valves. Oil can mess up paint jobs or get into products. This is a big problem in the food or medical fields. This is why air treatment is a very important part of any compressed air system. Using an air dryer and good air filters will make the quality of the compressed air much better. For jobs where even a tiny bit of oil is a problem, special oil-free air compressors are used. These oil-free compressors are made to compress air without using any oil where the compression happens.

How Do You Pick the Best Compressor for What You Need?

Choosing the right air compressor might seem hard. But it gets much easier if you ask yourself the right questions. First, figure out how much air you need. This is measured in Cubic Feet per Minute (CFM). Add together the CFM needed by all the tools you plan to use at the same time. It is smart to buy a compressor that can give you a bit more CFM than you need.

Next, think about the air pressure you need. This is measured in Pounds per Square Inch (PSI). Most pneumatic tools need about 90-100 PSI to work well. Your compressor needs to be able to make that much pressure with no trouble. Also, think about your power source. Most compressors use electricity. You need to be sure you have the correct wiring for the electric motor on the compressor you select. Last, decide if you need an oil-free model. For jobs like spray painting, making food, or for air that people will breathe, you must use an oil-free air compressor to avoid any contamination.

What Easy Things Can You Do to Care For Your System?

Good care will keep your compressed air system working well and will save you money. The best part is that many of these care tasks are simple to do. The most important thing is to look for and fix air leaks in your distribution system. Even a very small leak can waste a great deal of energy and power. You can often find leaks by just listening for hissing noises when things are quiet.

Another key task is to drain the condensate from your air receiver tanks. Most air tanks have a drain on the bottom. Water gathers there, and you should let it out every day. If you have an air dryer, check that it is working as it should. You also need to check and replace your air filters on a regular basis. A filter that is clogged will cause a pressure drop. This makes your compressor have to work much harder. For compressors that use oil to lubricate parts, you will need to check the oil level. You also need to do oil changes when the company that made it says to. Doing these simple things will make your compressed air system more trustworthy.

How Can You Make Your Compressed Air System Use Less Energy and Save Money?

A compressed air system can use a lot of electricity. But there are many ways to help it save energy. The best way is to fix leaks. A lot of the compressed air that is made is just lost because of leaks. Fixing them is like getting free power. Another way to save money is to lower your system pressure. Many systems are set to a higher pressure than is really needed. If you lower the pressure by only 10 PSI, you can save a lot of energy.

Be sure your compressor is the right size for the job. A compressor that is too big will just waste energy. A new, modern variable speed compressor can save you a lot of money. It will change its speed on its own to match how much air is being used. This is much smarter than an older compressor that is either fully on or fully off. Lastly, shut the compressor off when no one is using it. If your shop is closed for the night or for the weekend, there is no good reason for the air compressor to be running. It shouldn’t be trying to compress air when nothing is being used. A well-run compressed air system will be a great tool, not a big cost.

Key Things to Remember:

• A compressed air system is a “fourth utility.” It has three main parts: the air compressor, the storage tank, and the distribution system.
• The compressor is a mechanical device. Its job is to compress air by squeezing it into a smaller space, which gives the air its power.
• The two most seen types of air compressors are the piston (reciprocating) type for on-and-off jobs and the rotary screw type for non-stop factory use.
• Good air quality is very important. You need to take out water, dirt, and oil with an air dryer and air filters. This stops damage to your machinery.
• Simple upkeep, like fixing leaks and using the right system pressure, will help your compressed air system save energy and money.
