Air Compressor Won’t Build Air? How to Troubleshoot Common Issues Coming From the Air Dryer

Your air compressor is a very important tool in your workshop. But what happens when the air coming from it is wet? A broken air dryer can create big problems for your tools and what you are working on. Water in your air lines can cause rust. It can also mess up paint jobs and break your machines. This guide will give you simple steps to find and fix problems. You will learn how to spot and fix the usual problems with your air dryer compressor. By reading this, you can save time and money. It will also help you avoid headaches.

What Are the First Steps in Dryer Troubleshooting?

Before you start a big repair job, check the simple things first. Many big problems have simple causes. First, look over the whole air dryer unit. Look for any clear signs of damage, loose wires, or a leak. Make sure the dryer has power. Check the power switch and the circuit breaker. If the dryer is not turned on, it cannot take out the water. This simple check can save you a lot of time.

Next, listen to the air dryer while it is running. Do you hear strange noises? A soft hum can be normal. But clanking or grinding sounds could mean there is a problem with the compressor motor or a bearing. Check the gauge on the dryer. Does the pressure reading look right? Checking these things for a few minutes often fixes the problem. This simple check is very important. It helps your compressor and dryer system work the right way.

Why Is There Water in the Air Stream After the Dryer?

The most important job of an air dryer is to take out water. If you find water in your air lines, your dryer is not working right. One of the most common problems is an undersized dryer. This means the dryer is too small for how much air your air compressor makes. The dryer gets too much air. It cannot take out all the water. The hot, wet air going into the air dryer is more than it can handle.

Another reason could be a problem with the dryer’s inside bypass valve. Many dryers have a bypass valve. This valve lets air go around the drying part. If this valve is stuck open, wet air will mix with your dry shop air. Check the bypass valve to make sure it is all the way closed. Also, if the air going in is too hot, it can cause this problem. The air from the compressor might be too hot. The dryer cannot cool it down enough. Make sure your air compressor is not getting too hot. The problem is usually one of these simple things. A good dryer is very important for a healthy air compressor system.

Is Your Air Compressor Governor Causing the Problem?

The governor on your air compressor tells it when to pump air and when to stop. It manages the air pressure in your system. If the governor is not working the right way, it can cause problems for your air dryer. For example, if the governor makes the compressor turn on and off too fast, the air dryer might not have enough time to work properly. The dryer needs a steady flow of air to work its best.

To check the governor, watch your compressor. Does it build pressure to the right level (usually around 120 psi) and then turn off? Does it turn back on when the pressure goes down? A broken governor might make the compressor run all the time. This can make the air too hot and give the dryer too much work. You might have to adjust or put in a new governor. A bad governor can make a good compressor and dryer work badly. It is very important for the governor to work correctly.

How Do You Handle Pressure Issues with Your Air Dryer?

Problems with pressure are a common sign that something is wrong. If the pressure drops a lot when air goes through the dryer, your tools will not have enough power. This is usually caused by something being blocked. A dirty filter or a clogged up drain can block the air. First, check the air pressure gauge where the air goes in and where it comes out of the dryer. If there is a big difference between the two numbers, something is blocked inside the dryer.

You should check the filter inside. If it is dirty, you should replace it. A clogged filter can cause a big drop in pressure. Another reason could be ice building up inside the dryer. This happens when the refrigeration system is set too cold. The water in the air freezes. This blocks the pipe. To fix this, you will need to adjust the dryer’s temperature settings. Fixing pressure problems will make your whole compressed air system work better. A large compressor needs a good dryer.

Could a Dirty Heat Exchanger Be a Common Problem?

Yes, a dirty heat exchanger is a very common problem. The heat exchanger is like the radiator in your car. It helps make the hot compressed air cool. It uses cool, dry air from the dryer. Or, it uses a different cooler. It does this to make the air going in cooler. Over time, the fins on the heat exchanger can get covered in dirt, dust, and oil.

When the heat exchanger is dirty, it cannot cool the air well. The air going into the dryer stays too hot. This makes the dryer work a lot harder. It also does not work as well. You will see more water getting into your air lines. To fix this, you need to clean the heat exchanger. Turn off the dryer and let it cool. Use a soft brush and a vacuum to take the dirt off the fins. You may need a special cleaner if there is a lot of grease. Cleaning it often is a very important part of taking care of it. This helps your compressor and dryer run better.

What if the Refrigeration System on My Dryer Fails?

The refrigeration system is the most important part of a refrigerated air dryer. It works like a small fridge. It cools the air. This turns the water vapor into liquid water. If this system has a problem, the dryer will stop taking out water. Usual problems are losing refrigerant or a broken refrigeration compressor. A small leak can let the refrigerant get out over time.

You can check for a refrigeration problem in a few ways. Touch the pipes that are connected to the system. One should be cold and one should be warm. If both are at room temperature, the system is not running. You can also check the refrigerant pressure gauge if your dryer has one. A low number can mean there is a leak. A broken compressor pump will often be silent. To fix a refrigeration problem, you often need a skilled tech. Do not try to handle refrigerant yourself. You may need to fix or get a new compressor pump part. The dryer is no good if the refrigeration part is not working.

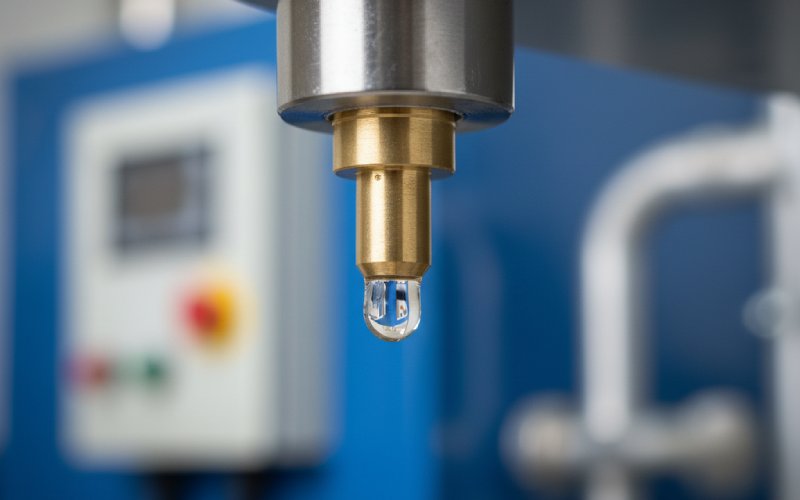

How Do I Check the Condensate Drain on My Compressor Dryer?

The condensate drain is a small but very important part of your air dryer. After the dryer cools the air, the water it pulls out needs to be drained away. This water is called condensate. It leaves through a drain. If the drain is blocked, water will collect inside the dryer. Soon, the air will pick up this water again. It will send it down your air lines. This means the dryer is not doing its job. A blocked drain is a very common problem.

Most dryers have a drain that works by itself. It might be an electronic timer drain or a float drain. To check it, find the drain valve at the bottom of the dryer. You should see a small tube or a discharge line coming from it. Watch the drain while the air compressor is running. It should open and let out a little bit of water every few minutes. If it never opens, it might be broken. If it stays open all the time, a lot of air is leaking out. You may need to clean the drain valve. Or, you might need to replace the whole condensate drain part. A drain that is not working right causes many problems.

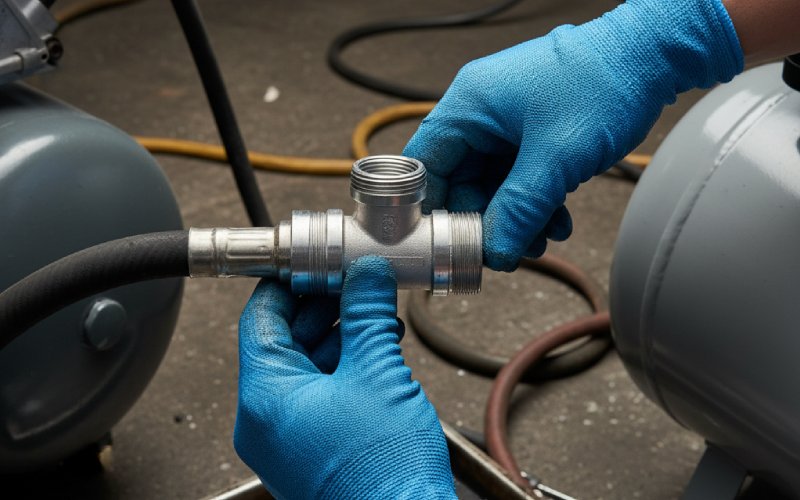

Are Clogged Pipes or a Dirty Filter the Real Issue?

Sometimes the problem is not with the dryer. It is with the parts connected to it. A clogged pipe or fitting can block air. This can cause the pressure to drop. Before air gets to the dryer, it goes through a filter. This filter takes out big pieces of dirt and oil from the compressed air. If this filter gets clogged, the dryer will not get enough air. The air dryer shows there is a problem. But the real reason is before the dryer.

To figure this out, check the filter on your air compressor. Replace it if it looks dirty. Look at the pipe that connects the compressor to the air dryer. Make sure it is not kinked or crushed. Using a smaller pipe than the maker suggests can also cause problems. Always use the right size pipe for your air system. A clean filter and clear pipes are needed. They help your compressor and its dryer work correctly. You must check these parts often.

What Do I Do if My Air Dryer Shows Alarms?

Newer air dryers often have a control panel. It has lights or a screen. These panels will show an alarm if there is a problem. The alarm could be a warning for high temperature. It could be an alert for low pressure. Or it could be a notice that the drain has failed. First, read the user manual that came with your dryer. The manual will explain what each alarm code means. It will also give you steps to fix the problem.

For example, a high dew point alarm means the dryer is not taking out enough water. This could be because of a dirty cooler, a high room temperature, or a refrigeration problem. A low refrigerant pressure alarm means there is probably a leak. Do not ignore these alarms. They are made to keep your machines and your compressed air system safe from water damage. An alarm is your dryer telling you it needs help. Pay attention to what your air dryer shows. Take steps to fix the setting that is wrong.

When Should I Call a Tech for Dryer Repair?

You can fix many common dryer problems on your own. Cleaning drains, changing filters, and cleaning a cooler are simple tasks. But, some problems need a person with special skills. If you think there is a refrigerant leak, you need a certified tech. Working with refrigerant needs special tools and training. Trying to fix it yourself can be dangerous. It is also often against the law. A skilled tech can find the leak. They can fix it. Then they can refill the system with the right amount of refrigerant.

You should also call a tech if you have an electrical problem, like a broken compressor motor or a bad sensor. Working on parts with high voltage is not safe. If you have tried all the simple steps to find the problem and your dryer still does not work, it is time to call for help. The company you bought the equipment from can often suggest a good service tech. Sometimes, a quick call to tech support can help you figure out the problem over the phone. But for a big repair, you should get a professional. Trying a hard repair on your own could cause more damage to the dryer compressor.

Key Takeaways to Remember

• Start with Simple Checks: Always check for power, things that look broken, and strange noises first. Many problems are easy to fix.
• Keep It Clean: A dirty heat exchanger (cooler), a clogged filter, or a blocked drain are the most common reasons a dryer fails. Cleaning it often is the best way to take care of it.
• Watch the Drain: Make sure the condensate drain is working. A drain that is not working right will put all the water back into your air.
• Check Your Governor: A broken air compressor governor can make your dryer work badly. This is because it turns the compressor on and off too much.
• Don’t Ignore Alarms: Your dryer’s control panel gives you important clues. Use the manual to understand what the alarms are telling you.
• Know When to Call a Pro: Do not try to fix refrigerant or difficult electrical problems by yourself. Call a trained tech for a safe and correct repair.
