Burst speed testing for high-speed rotors: standards and safety

If you spend your days around high-speed rotors, you already know the uncomfortable truth: when things go wrong, they go wrong fast.

Burst speed testing is where you stop guessing and deliberately push a rotor to (and beyond) its limits to understand how, when, and how violently it fails. It sits at the intersection of physics, standards, and very real human safety.

In this guide we’ll walk through what burst speed really means, how the major standards frame it, what a good test program looks like, and how to make sure nobody gets hurt in the process. The goal is not just “pass the audit,” but to build a test philosophy that your future self and your field data will thank you for.

• You’ll get the most value from this article if you are:
  • A turbomachinery, aerospace, or e-motor designer wanting realistic burst margins
  • A test or QA engineer planning spin / burst tests and writing procedures
  • A safety / certification engineer referencing API, FAA, EASA or ISO standards
  • A manufacturing engineer trying to link production variability to overspeed capability
  • A technical manager who has to sign off that “yes, this rotor is safe”

1. Burst speed vs overspeed vs “normal life”

Let’s sort out the vocabulary first, because different standards use different language and it’s easy for teams to talk past each other.

• Operating speed – where the rotor spends most of its working life.
• Maximum continuous operating speed (MCOS) – the highest speed you’re allowed to sit at for long periods in service.
• Overspeed – a temporary exceedance of the allowed speed, e.g. during a transient, fault, surge, or control failure. In many aero-engine regulations, rotors must be able to survive certain overspeed scenarios, often around 115–120% of their allowable speeds, without a hazardous failure.
• Burst speed – the rotational speed at which the rotor undergoes catastrophic failure due to centrifugal loading. In aero work, it’s often defined as the speed where the disc catastrophically fails if driven up past its design limit.

Industry standards turn these concepts into specific requirements:

• API 617 (for axial and centrifugal compressors and expander-compressors) sets minimum requirements for process compressors in petroleum, chemical and gas service. For impellers, the associated guidance and QA practices typically require overspeed testing to at least 115% of MCOS for one minute, with dimensional checks before and after and NDT to verify no cracking.
• Aero standards (FAR 33.27 / EASA CS-E 840) specify overspeed levels like 120% of maximum allowable rotor speeds for most ratings, 115% for certain one-engine-inoperative ratings, and also look at speeds reached due to system failures.

Burst testing itself is destructive by definition. You do not burst every production rotor. Instead, you burst representative hardware to anchor your analysis: you prove that when the model says “this is where it dies,” reality agrees, and that the predicted margins back to overspeed and MCOS are trustworthy.

• Key definitions at a glance
  • MCOS – Highest continuous duty speed allowed in normal operation.
  • Overspeed test – Short, non-destructive spin above MCOS (e.g. 115–120%) to prove integrity and stability.
  • Proof test – Like overspeed, but often closer to service speed: “show me it survives.”
  • Burst test – Deliberately push the rotor until it fractures, usually in a contained spin pit.
  • Overspeed margin – Ratio between overspeed test speed and MCOS (or design service speed).
  • Burst margin – Ratio between burst speed and MCOS (or sometimes overspeed speed).

2. Standards and regulations: who says what?

No single document “owns” burst speed testing. Instead, you have a patchwork of standards and regulations that touch it from different angles: component strength, system safety, and industrial risk.

Here are some of the most relevant ones you’ll see in practice:

• API 617 – Axial and Centrifugal Compressors and Expander-Compressors Defines minimum requirements for compressors in petroleum/chemical/gas service. It calls for impeller overspeed tests (commonly 115% of MCOS for 1 minute) with pre- and post-test dimensional checks and NDT, but typically leaves detailed acceptance limits to the manufacturer’s specifications.
• FAA 14 CFR §33.27 & AC 33-27-1A – Aircraft engine rotor strength (overspeed) The regulation defines rotor overspeed requirements; the Advisory Circular explains acceptable ways to demonstrate compliance by testing, analysis or both. The aim is clear: at defined overspeeds, the rotor must not fail in a way that creates a hazard to the aircraft.
• EASA CS-E 840 / aero guidance on overspeed & burst margins Similar in spirit to the FAA rules, requiring the engine rotor system to withstand specified overspeed conditions, with explicit consideration of speeds resulting from system failures, and defining burst speed for safety margin calculations.
• ISO 21789:2022 – Gas turbine applications — Safety A system-level safety standard that lists hazards such as rotating part failure and requires formal risk assessments and protective measures across the turbine’s life-cycle, referencing ISO 12100 and structured methods like FMEA and HAZOP.
• ISO 29461-3:2024 – Air intake filter systems — Mechanical integrity (“burst test”) While focused on filter elements, it’s an example of ISO prescribing a method and procedure for mechanical integrity tests up to an abnormal final pressure — essentially a burst-type test for filter cartridges.

To piece this together, engineers usually do three things:

1. Use component-level standards (API, ISO test methods, material codes) to define how they prove rotor strength.
2. Use system-level safety standards (ISO 21789, ISO 12100, company functional-safety rules) to decide what happens if a rotor bursts and how that risk is controlled.
3. Use regulatory rules (FAA/EASA for aero, local codes for industrial plants) to align overspeed and burst margins with certification expectations.

Quick comparison of key references

• When you read any of these, always ask:
  • Does this document specify exact overspeed levels and dwell times, or just “proof of strength”?
  • Does it require actual burst tests, or is analytical demonstration enough if conservatively validated?
  • Are acceptance criteria for dimensional change and defects defined, or delegated to the manufacturer?
  • Does it address containment and system-level effects of a burst, or only the rotor itself?
  • How does it expect you to handle material scatter, manufacturing variability, and repairs?

3. The physics underneath burst speed

Conceptually, burst speed is where centrifugal stresses outrun what the material and geometry can sustain. At high speed, each tiny volume of material wants to fly away; the disc or rotor body is what’s holding all those pieces together.

Key points:

• Centrifugal stress scales roughly with the square of speed (ω²). That means going from 100% to 120% speed is not a 20% stress increase – it can be closer to 40+%, depending on geometry.
• Hoop (circumferential) stress near the bore is usually the critical quantity for discs. Research on aero turbine discs and similar components commonly evaluates burst speed using criteria that relate mean hoop stress to material ultimate tensile strength (e.g., Robinson / Hallinan criteria).
• Geometry matters a lot. Bores, keyways, bolt holes, thin webs, fir-tree roots, and magnet slots create stress concentration zones that may trigger burst at lower speeds than a simple solid disc would suggest.
• Material behaviour at temperature (yield, UTS, creep, low-cycle fatigue) shifts the effective burst limit. Hot rotors (turbines, high-speed motors) will burst at lower speeds than cold ones, all else equal.

Modern practice usually looks like this:

1. Finite Element Analysis calculates stresses at various speeds, sometimes including plasticity and non-linear behaviour.
2. Burst criteria (like Robinson/Hallinan style methods) convert those stresses plus material properties into a predicted burst speed and safety margin.
3. Spin / burst tests on representative rotors verify that the real burst speed and failure mode line up with predictions, within tolerances. For high-speed electric machine rotors (20–25k rpm), studies show good correlation between FEM predictions and spin tests when deformation and stresses are measured carefully.

Done well, this closes the loop: models predict, tests confirm, margins become something you trust rather than something you hope.

• Factors that quietly eat into your burst margin
  • Local stress raisers: sharp fillets, weld repairs, EDM features, fretting scars
  • Manufacturing scatter: grain size variations, inclusions, porosity, residual stresses
  • Temperature and environment: hot operation, oxidation, corrosion, hydrogen embrittlement
  • Assembly effects: interference fits, blade dovetails, tie-bolts, shrink rings
  • Operational history: low-cycle fatigue, overloads, transient overspeeds, surge events
  • Damage and FOD: nicks, dents, or small cracks that were “too small to worry about”
  • Non-linear behaviour ignored in simple analysis: plasticity, creep, ratcheting

4. How burst speed testing is actually done

If you’ve never seen a burst test, the basic concept is simple but the engineering behind it is anything but.

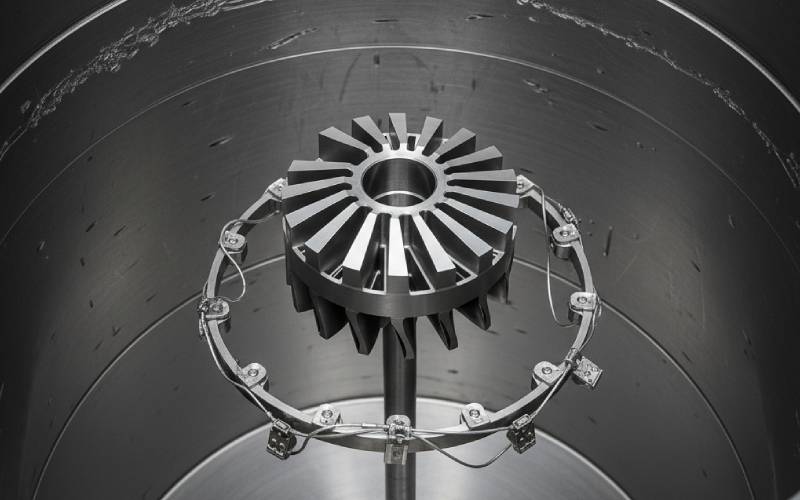

A typical high-speed spin / burst test for turbomachinery or rotor discs looks roughly like this:

1. The rotor is mounted on a flexible spindle and suspended in a heavily armoured vacuum chamber (classic vertical-axis spin pit setup). The flexible shaft lets the rotor find its own balance axis without an elaborate bearing system.
2. The spindle is driven by a compressed-air turbine or high-speed electric motor, accelerating the rotor to the desired speed profile.
3. The chamber is pumped down to a low pressure — on the order of a few hundred millitorr — to reduce aerodynamic drag, heating, and to lower the risk of dust or oil-fog explosions if a rotor fails.
4. Instrumentation tracks speed, growth, vibration, and often strain until either the target speed is reached for a specified dwell, or the rotor bursts.

The kinetic energy involved is huge. One vendor illustrates that a heavy steel disc spinning at around 18,000 rpm stores energy comparable to a multi-ton truck travelling at highway speeds. That’s why containment and remote operation are non-negotiable.

For larger rotors, specialist facilities use tunnel-type structures or axially movable vacuum chambers with integrated burst protection and steel inserts to prevent tearing or fragment escape.

In high-speed electric machine development, spin test programs often combine:

• An initial burst test on early prototype rotors to establish safe test speeds.
• Multi-step overspeed / deformation tests, where the rotor is cycled up in speed increments, measuring radial expansion at multiple locations, before a final burst test on separate specimens.

The closer your test setup is to the real rotor boundary conditions (temperature, restraints, fixtures), the more valuable your burst data becomes for design and certification.

• Typical signals you’ll want to capture in a spin / burst test
  • Rotational speed vs time – including overshoot and coast-down behaviour
  • Radial growth / expansion – via displacement probes or full-field optical methods
  • Strain – traditional strain gauges or non-contact strain-field mapping for complex structures
  • Vibration vector – amplitude and phase; deviations from baseline can indicate crack initiation
  • Temperature – especially for hot spin tests on turbine or compressor rotors
  • High-speed video (where practical) – to understand fragment trajectories and containment performance
  • Event markers / control signals – to align data with specific speed steps, dwells, or anomalies

5. Designing a burst-speed test program that actually helps engineering

Burst testing should not be a ritual you perform at the end “because the spec says so.” If you treat it as a one-off stunt, you’ll end up with an impressive crater in the spin pit and very little design insight.

A high-value program usually follows this logic:

1. Start from risk, not from tradition. Use your system-level safety analysis (FMEA, HAZOP, ISO 21789-style risk assessments) to identify which rotors are safety-critical and how they might fail.
2. Map standards to use cases. Does your rotor live in an API 617 compressor, a certified aero engine, or an industrial gas turbine? The applicable standards define what counts as “acceptable” overspeed and burst behaviour.
3. Build the best model you can (and admit its limits). Run FEA with appropriate material models (including plasticity if needed), manufacturing tolerances, and interface loads. Use literature burst criteria as a starting point, not a gospel.
4. Choose representative test articles. Include worst-case geometries (thinnest webs, largest bores), extreme tolerances, and any repaired/overhauled conditions that will exist in service.

Add in development bursts early (to learn fast) and qualification bursts later (to prove margins on nearly-final hardware). For electric machines and other compact high-speed rotors, published work shows how alternating between step-wise deformation tests and final burst tests gives excellent correlation and confidence in the design envelope.

Ultimately you want a tight feedback loop: simulation → targeted burst tests → model updates → robust, documented margins.

• A practical burst-test planning checklist
  • Define clear objectives: proof of model, regulatory demonstration, containment validation, or all of the above.
  • Identify applicable standards and regulations (API, FAA/EASA, ISO 21789, customer specs).
  • Conduct (or revisit) your risk assessment – FMEA, fault trees, HAZOP – focusing on rotating part failure scenarios.
  • Build / update FE models of the rotor and assembly; document key assumptions.
  • Specify speed profiles: ramps, dwell times, overspeed plateaus, and final burst strategy.
  • Design fixtures and containment to reflect real boundary conditions while keeping fragments safely enclosed.
  • Define instrumentation & data acquisition (what, where, sample rates, triggers).
  • Plan pre- and post-test inspections (dimensional checks, NDT, fractography).
  • Decide in advance how you’ll update design allowables and margins based on the results.

6. Safety: not optional, not negotiable

Spin and burst tests are inherently hazardous. The whole point is to take a rotor to the point where it comes apart at extreme speeds. You control the risk with engineering and discipline, not hope.

Key safety pillars:

1. Containment by design
   • For medium to large rotors, long tunnel-like test bays with robust walls and roofs are often recommended to direct and absorb fragments.
   • For rotors up to several tonnes or around ~1.7 m diameter, specialized vacuum chambers with integrated burst protection and steel inserts are used to maintain integrity even if large fragments hit the walls.
   • Spin pits are typically lined with softer materials (like lead) behind massive steel armour to reduce shock loading when fragments impact.
2. Vacuum and atmosphere control
   • Operating the test in low vacuum reduces aerodynamic drag and also lowers the risk of igniting metal dust or oil mist during a burst.
   • Some advanced facilities can run controlled atmosphere (e.g., higher pressure or specific gas mixtures) for specialized fatigue or fretting studies, but this comes with extra explosion and fire risk and must be engineered carefully.
3. Remote operation & interlocks
   • Operators stay behind heavy barriers, controlling the test from a separate control room.
   • Interlocks prevent spinning unless doors are closed, vacuum is adequate, and emergency stop systems are armed.
   • Emergency stop and emergency shutdown sequences (concepts formalized in standards like ISO 21789) are designed so a single action can safely kill the test in abnormal conditions.
4. Procedures, training, and change control
   • Written procedures for normal runs, aborted runs, and post-burst cleanup.
   • Regular drills for emergency scenarios: containment breach suspicion, vacuum loss, runaway acceleration.
   • Strict change management: changing a fixture, adding a shim, or altering the speed profile is a controlled change, not an improvisation.

Because the stored energy is so high, even small mistakes can have catastrophic consequences. The good news: when you combine robust mechanical design, good risk assessments, and disciplined operations, modern spin facilities can run extremely demanding burst tests with a very strong safety record.

• Non-negotiable safety practices in a spin / burst facility
  • Clearly defined exclusion zones; nobody enters the test cell during runs.
  • Remote control of all test functions from behind ballistic-rated barriers.
  • Interlocked doors, vacuum, and drive systems – if anything is out of spec, the test won’t start.
  • Redundant overspeed protection (both control logic and independent hardware cut-outs).
  • Regular inspection of containment structures and vacuum chambers for damage or fatigue.
  • Documented emergency shutdown procedures and frequent training exercises.
  • Tight control over oil, dust, and debris inside the chamber to reduce explosion hazards.

7. Common pitfalls (and how to avoid them)

Even experienced teams fall into some depressingly common traps:

• Treating analysis as truth instead of a hypothesis. Linear-elastic FEA with tidy material data will happily give you “burst speeds” that look very precise – and may be very wrong if you ignore plasticity, temperature, and defects.
• Using burst tests as a one-shot exam. If your first and only burst test is on a nearly-final rotor at the end of the program, you’ve lost the chance to learn cheaply. Early, smaller-scale or simplified burst tests on key geometries are often worth their weight in schedule risk reduction.
• Under-instrumenting the test. Watching a rotor explode at high speed and only knowing “it burst around 165% speed” is scientifically heartbreaking. Without growth, strain, vibration, and video, you’ve mostly just confirmed that your containment works.
• Ignoring system-level behaviour. A “safe” rotor that sheds fragments into an unsafe casing, a nearby gearbox, or fuel lines is not safe. Standards like ISO 21789 explicitly push you to think about rotating part failure as a system hazard, not just a rotor property.
• Forgetting the production reality. It’s tempting to burst a beautifully machined, carefully polished prototype and declare victory. Real life includes repaired parts, tolerance extremes, and occasional off-nominal materials. Your test matrix and margins need to reflect that messy reality.

The antidote is simple but not easy: treat every burst test as an experiment, not a checkbox.

• “Before we say this rotor is safe, we have…”
  • Verified which standards and regulations apply and what they actually demand.
  • Built FE models and explicitly documented assumptions and limitations.
  • Performed at least one calibration burst where analysis and reality were compared.
  • Established quantitative overspeed and burst margins that include material scatter and tolerances.
  • Checked that containment and system-level risk meet plant / aircraft safety goals (e.g., ISO 21789 and internal safety cases).
  • Documented how test results will feed back into design allowables, inspection limits, and maintenance intervals.
  • Captured and archived all raw test data, not just summary plots.
