The Incredible Technology: Why Motor Cores are Crucial for Electric Motors and Generators

This article intends to discuss something little but very essential in electric motors and generators : the motor core . You could not see it, yet it’s like the heart of these amazing tools. This post is for you if you have actually ever before questioned why this component is so essential. We’ll discover exactly how its style and the material it’s made from make a huge difference. Recognizing motor cores assists us see exactly how we can make electric motors and generators better and utilize much less power. This insight is key in our modern technology -driven globe, where effectiveness and integrity are paramount.

Just What Is a Motor Core in Electric Motors and Generators?

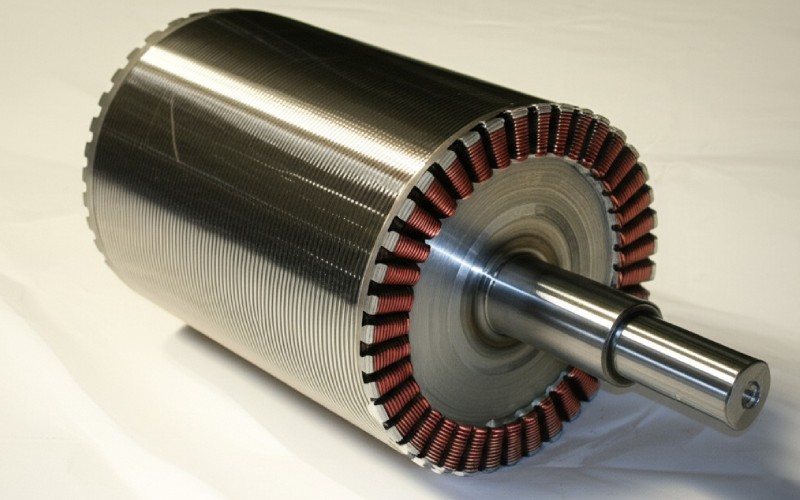

Have you ever before questioned what makes electric motors and generators rotate and create power? A huge component of the response is the motor core . Think of it as the foundation of the equipment . It’s a primary part, and it’s normally located in the center. Designers form this part from numerous thin metal sheets stacked and often compressed, bonded, welded, or interlocked. The motor core offers a path for the magnetic flux developed by the copper winding . The primary job of motor cores in electric motors and generators is to guide and concentrate the magnetic flux, providing a low-reluctance path for it. These fields are super important for making activity or producing power. Without a good motor core , the system would not work well. It aids to make the magnetic force strong and concentrated, which is crucial for good efficiency . The layout of these motor cores is a key item of innovation .

Why is the Design of Motor Cores So Important for Efficiency?

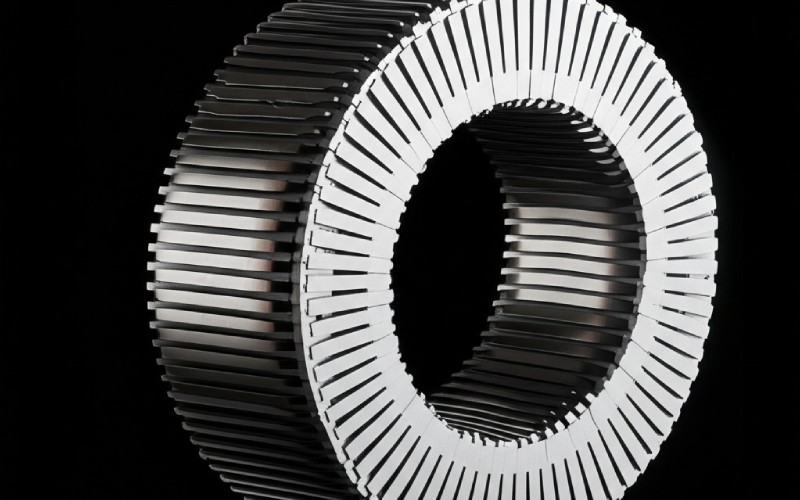

So, why do we care so much regarding the layout of motor cores ? Well, an excellent design is important for just how well electric motors and generators job and their overall efficiency . The sizes and shape of the motor core can alter just how much power or torque you obtain. It can additionally influence how much energy the equipment utilizes. A smart design aids to decrease wasted power. A good style also helps to decrease noise and resonance from the electric motor . When designers layout motor cores , they think of lots of points. They intend to make sure the electromagnetic field is perfect. They likewise attempt to make the motor core solid and simple to make. A far better style can result in a smaller , lightweight , and a lot more powerful electric motor . This continuous growth in design aids the entire industry to move forward. The effect of excellent layout is massive.

Exactly How Does Lamination in Motor Cores Job Its Magic Strategy?

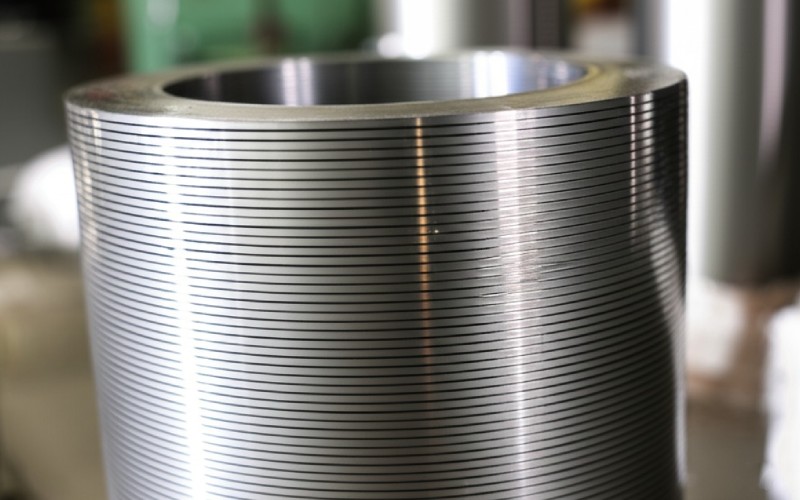

Lamination indicates making the motor core from very slim sheets of metal. These sheets are piled with each other, yet they have a special finish of insulation between them. This might seem like a little detail, but it’s a brilliant technique. This lamination technique , creating an intricate interior structure, is key to combating something called eddy currents . These are small, unwanted electrical currents that can move in a solid metal motor core . Eddy currents waste energy and produce heat . By using slim lamination sheets, we minimize these currents a lot. This makes electric motors and generators work better and aids to enhance their efficiency . The lamination process is vital for improving efficiency .

What Materials Innovation Makes the Best Motor Cores?

Picking the appropriate product for motor cores is a huge offer in electric motor technology . We require a product that can come to be magnetic conveniently but also lose its magnetism promptly. This is what we call a soft magnetic material . Standard solid iron motor cores had a lot higher losses compared to contemporary laminated styles. Iron is a common choice, but commonly it’s a special kind of iron alloy . Designers seek an appropriate product that provides the most effective performance . One of one of the most prominent products is silicon steel , additionally referred to as electrical steel . Including silicon to iron transforms its properties in a good way. It assists to reduce energy losses due to something called hysteresis . Designers are constantly searching for new and much better material options. The objective is to locate a material that gives the most effective efficiency and aids reduce power consumption . Selecting a material with reduced hysteresis loss is extremely important for enhancing efficiency . The material selection has a big effect on the motor cores’ capability .

Can We Minimize Energy Loss with Better Motor Cores for Energy Efficiency?

Absolutely! One of the largest works of good motor core design and material choice is to decrease power loss. When electric motors and generators run, some power can be lost as heat . This makes them less efficient. Well-designed motor cores are vital to improving energy efficiency . The result is an extra reliable device that requires much less power to do the exact same job. We can lower two primary types of energy losses due to the motor core . The first is hysteresis loss, which takes place when the electromagnetic field keeps transforming. The second is eddy currents , which we talked about with lamination . By utilizing the appropriate product like silicon steel and correct lamination techniques, we can dramatically decrease these losses. This not just conserves power however can likewise decrease the operating temperature level of the machine , making the entire system much more reliable.

Exactly How Does Motor Lamination Improve Electric Motor Efficiency?

Allow’s dive a little bit deeper right into just how motor lamination helps enhance performance in electric motors and generators . Lamination involves utilizing thin sheets. These sheets in motor cores are electrically insulated from each other. This style is really clever since it produces barriers to undesirable currents. The primary benefit of motor lamination is that it assists to decrease power squandered as heat . This indicates even more of the electrical power put into an electrical motor is converted into helpful movement or output . This straight boosts the efficiency and performance and reliability of the electrical motor . So, motor lamination does not just reduce losses; it proactively assists the maker do its job much better. This specific technique is fundamentally crucial to modern-day motor cores .

What’s the Role of Motor Cores in Different Sector Applications and their Capability?

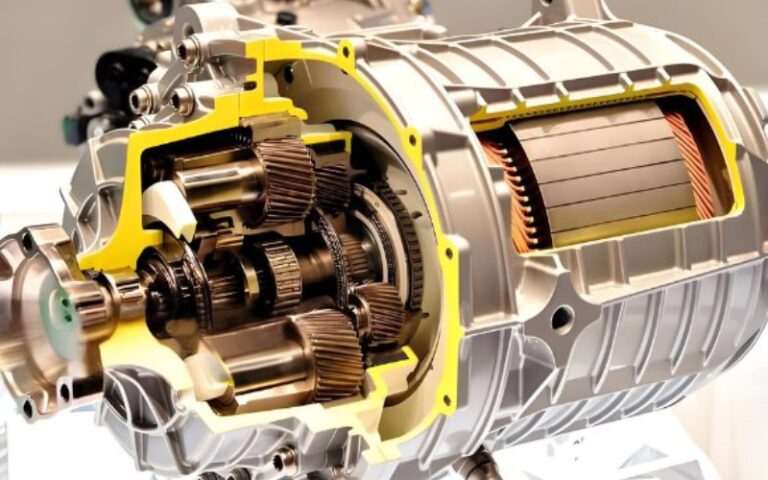

Motor cores are not just for one kind of device ; they are everywhere! You’ll locate motor cores in countless industrial and day-to-day gadgets. In the automotive industry , they are crucial for electric vehicles. They drive the wheels and are extremely reliable and lightweight . The layout for these motor cores need to be small and powerful. In big commercial equipment , like pumps and fans, durable motor cores ensure long life and consistent performance . Even in your home, home appliances like washing machines and fridges use electric motors and generators with very carefully designed motor cores . Each sector could have various requirements for the motor core layout and product , but their necessary function stays the very same. The modern technology adapts to these different applications , from a small motor in sensor systems to a big generator, showcasing the vast ability of motor core innovation .

Exactly How Do We Produce and Stack Motor Cores Successfully using Production Techniques?

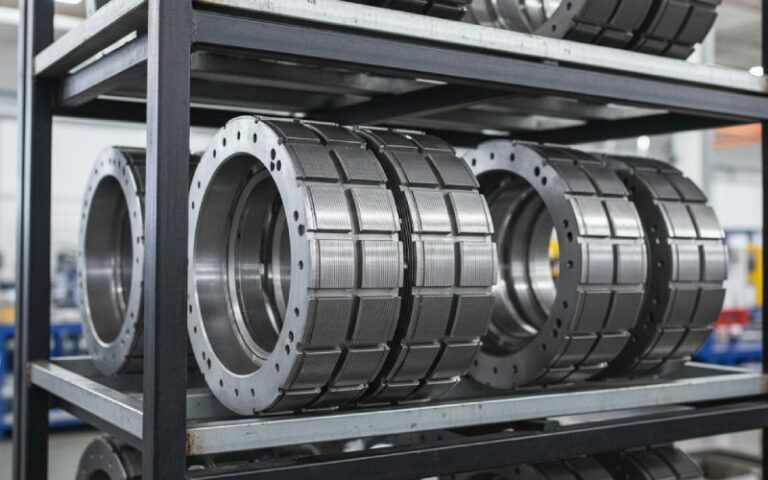

Making motor cores can appear intricate , but modern technology aids. We need to generate several thin lamination sheets with high accuracy . Then, these laminations must be assembled, or to stack them, to create the motor core . This is where motor core manufacturing comes in. Modern modern technology has actually made this manufacturing process better and more efficient. We often utilize stamping technologies to reduce the lamination sheets from a larger electrical steel coil. This has to be very accurate to make certain the last motor core has the best shape and size. After stamping, the laminations are stacked. Sometimes they are welded, bonded, interlocked, or secured by cleating to hold them with each other. The goal is to produce a strong part that still keeps the lamination layers separate. We also automate much of these actions in production to boost uniformity and minimize costs. This strategy permits suppliers to produce high-quality motor cores .

What Future Innovations Can We Anticipate in Motor Core Innovation?

Scientists discover new material structures, using even lower energy losses and better magnetic properties. These brand-new materials could cause even more efficient electric motors and generators , and higher power density. A key challenge is discovering materials that are also easy to collaborate with and economical. One more area of development is in style and production. Advanced computer modeling is a powerful tool that helps us enhance the layout of motor cores for specific applications like never before. This assists us to make them smaller , lighter, and give higher power . We could also see new methods to make the lamination even thinner or make use of new joining techniques to stack them. These progressive advancements will certainly continue to improve the performance of motor cores and help reduce our general energy usage . This development is essential for the future landscape of motion and power, transforming motor design and efficiency .

Conclusion: Why Motor Cores are Important for Modern Electric Motors and Generators

So, as we reach our conclusion , it’s clear that motor cores are truly vital for contemporary electric motors and generators . They are much more than just a piece of metal. They are a very engineered component , a product of innovative modern technology and mindful design . From the choice of material to the lamination technique , every information matters for good efficiency . These motor cores are the hearts that allow electric motors and generators to function successfully. They help minimize energy waste, enhance performance , and make these machines effective and dependable. The continuous advancement and innovation in motor core innovation assure even much better electric motors and generators in the future. They are truly pivotal in exactly how we use and generate electric power throughout every sector . Their role in enhancing performance and reliability can not be overemphasized.
