Toroidal Transformers: A Deep, Human-Level Guide (That Actually Helps You Design Better)

If you’ve ever stared at a donut-shaped transformer wondering “Is this really worth the extra cost and hassle?”, this guide is for you.

Most articles on toroidal transformers stop at “they’re small, quiet, and efficient”. That’s true—but it’s only half the story. Here we’ll go deeper into how they really behave in a design, the trade-offs that bite in the lab, and how to choose (or reject) a toroid with confidence.

1. What Is a Toroidal Transformer, Really?

At its core (pun intended), a toroidal transformer is just a transformer built on a ring-shaped magnetic core. The core is usually made from a long strip of silicon steel or ferrite, wound into a loop, and then wrapped with primary and secondary windings all the way around its circumference.

Because the magnetic path is a closed ring with no natural air gaps, the magnetic flux tends to stay inside the core instead of leaking out into your PCB and nearby circuitry. That’s one of the big reasons people love toroids.

• Key idea: a toroidal transformer is not just “round for fun.” Its shape reduces flux leakage, improves efficiency, and shrinks size and weight compared to many traditional E-I laminated cores at the same power rating.

2. How a Toroidal Transformer Actually Works (Without Drowning in Math)

Functionally, a toroidal transformer obeys the same physics as any other transformer: Faraday’s law of electromagnetic induction. Apply AC to the primary, you get a changing magnetic field in the core, and that field induces a voltage in the secondary.

Where the toroid differs is how cleanly and efficiently it does this. The closed ring helps confine the field, so:

• Most of the magnetic flux runs neatly around the ring.
• Very little escapes outward (low leakage flux).
• Wire length can be shorter for the same number of turns, which reduces copper losses.
• Conceptual picture of what’s happening each AC cycle:
  • AC voltage on the primary creates a changing magnetic field in the core.
  • That changing field loops around the ring, threading the secondary windings.
  • The secondary “sees” this changing flux and a voltage is induced, proportional to the turns ratio.
  • Because the flux is tightly contained, most of the magnetizing effort goes into useful coupling, not stray fields.

3. Toroidal vs E-I Core at a Glance

If you’re choosing between toroidal and standard laminated E-I transformers, here’s the big picture. Values are generalized and can vary between manufacturers, but the trends are consistent across reputable sources.

4. Why Designers Love Toroidal Transformers (The Real Advantages)

When you strip away the marketing, toroids tend to earn their keep in designs where noise, efficiency, and space all matter at the same time.

Because the core is closed and grain orientation can be optimized, toroidal transformers typically deliver:

• Higher efficiency than comparable E-I units—often in the 90–95% range, and in some custom cases even higher.
• Lower stray field, which means less induced hum in sensitive audio or measurement circuitry nearby.
• More compact, lighter form factor, commonly around half the volume of the equivalent E-I core transformer.
• Quieter operation, both electrically (less EMI) and mechanically (less audible hum).
• In practice, this translates into:
  • Easier layout around low-level analog front-ends.
  • Smaller enclosures, slimmer rack units, and more portable gear.
  • Lower standby losses in always-on devices like audio amps, lab gear, or industrial controls.

5. The Trade-Offs You Can’t Ignore

Toroids are not magic. In fact, some of their strengths come with very real downsides that you must account for in a design.

The big gotchas are:

• Higher inrush current: Because the core has no intentional air gap and saturates quickly if switched on at the wrong point in the AC cycle, toroids can pull huge inrush currents at power-on.
• More expensive to manufacture: Every turn of wire has to pass through the center of the core during winding, which is hard to automate and often demands special winding machines.
• Less ideal at very high power levels: For multi-kVA and especially multi-tens-of-kVA power levels, traditional laminated designs still usually win on practicality and cost. Many vendors put toroidal isolation transformers in the single-digit kVA range, while large power distribution is still dominated by laminated designs.
• Design consequences you’ll actually feel:
  • Fuses and breakers that are fine for an E-I transformer may nuisance-trip with a toroid on cold start.
  • Large toroids can be awkward to wind, rework, or repair compared with a bobbin-based E-I transformer.
  • For very high power, availability and price can become limiting factors.

6. Where Toroidal Transformers Shine in the Real World

So when is a toroid the smart choice rather than a nice-to-have?

They tend to be a strong fit in applications where clean power in a constrained space is the priority:

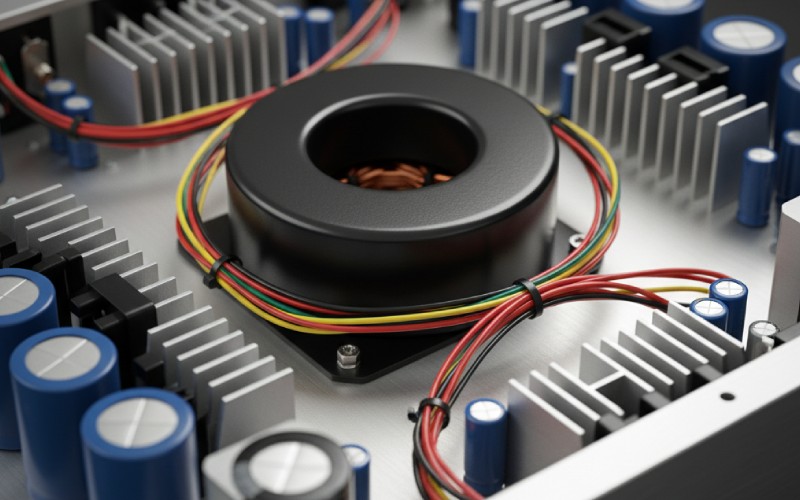

• Audio amplifiers and studio gear – low mechanical hum and reduced stray fields help keep noise floors down.
• Medical and instrumentation equipment – compact, efficient power with tight EM emission is valuable in sensitive diagnostics and test setups.
• Precision power supplies & lab equipment – low leakage flux and low off-load losses make sense for always-on devices.
• Inverters and clean backup power systems (e.g., low-frequency inverters) – high efficiency and low noise are attractive, as long as power levels stay within toroidal sweet spots.
• Compact industrial controllers and semiconductor testers – space savings and lower EMI help when cramming high-density electronics into tight enclosures.
• A quick heuristic:
  • If your spec says small, quiet, low-EMI, always-on, ≤ a few kVA → a toroid is probably worth serious consideration.
  • If your spec says massive kVA, outdoor, utility, or ultra-low cost → an E-I or other laminated design is probably more realistic.

7. Core Materials: Not All Toroids Are the Same

Even within the toroidal world, the core material completely changes behavior.

At mains frequency, you’ll mostly see:

• Grain-oriented silicon steel toroids – common for 50/60 Hz power transformers up to a few kVA, with good efficiency and reasonable cost.

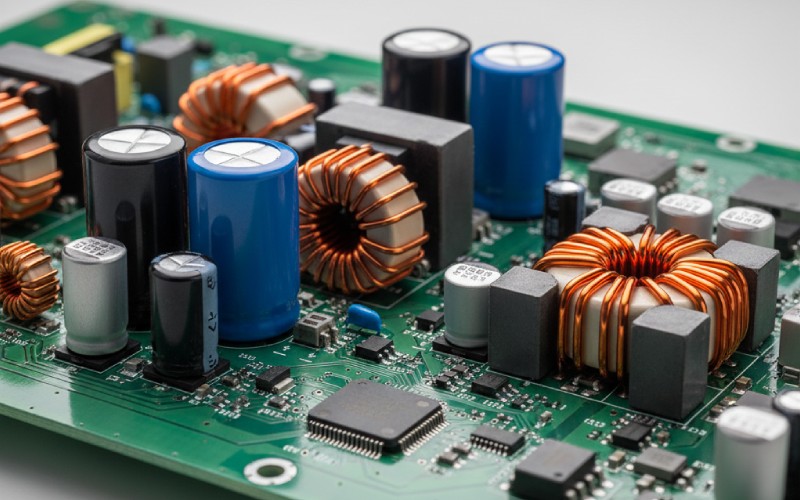

• Ferrite toroids – used at higher frequencies (tens of kHz to MHz) in switch-mode power supplies, inductors, and filters. They allow much smaller sizes but have lower saturation flux.
• The choice of material shifts:
  • Core losses (especially at higher frequency).
  • Saturation behavior (how much flux density the core can handle).
  • Size vs. temperature rise for a given power level.
  • Cost and availability, especially for specialized powder cores.

For a typical “big metal donut” at 50/60 Hz, you’re almost certainly looking at silicon-steel strip-wound toroids. High-frequency toroids behave differently enough that they’re practically a separate design topic.

8. Practical Design & Selection Checklist

When you’re choosing a toroidal transformer—not just in theory, but for a BOM—this is the checklist you actually care about.

At minimum, specify:

• VA rating – not just by guessing from output power; include inefficiencies and headroom.
• Primary voltage & frequency – e.g., 115/230 V selectable, 50/60 Hz operation.
• Secondary voltages & currents – including taps and regulation tolerance under load.
• Insulation system & approvals – UL/IEC/CE, insulation class, creepage/clearance needs.
• Mounting style – potted, encapsulated, or open-frame; single-bolt, PCB-mount, or frame mount.
• Screening & shielding – electrostatic screens, dual chambers, or external shields if you’re near ultra-sensitive circuitry.
• Additional questions that separate okay designs from great ones:
  • Do I need a soft-start circuit or NTC to manage inrush?
  • How hot is the ambient environment, and what temperature rise is acceptable?
  • Are there harmonic currents or unbalanced loads I should talk about with the vendor?
  • Will this unit be potted (better mechanical damping and protection) or left open (better cooling and easier inspection)?

If you walk into a vendor conversation already knowing your VA, regulation, ambient, and compliance requirements, you’re ahead of 90% of the market.

9. Handling Inrush Current Like a Pro

One of the most common “surprises” with toroids is that perfect-looking bench designs start popping fuses in the field. That’s almost always inrush.

Because the toroidal core has no air gap and very low leakage, if you energize it at a voltage peak with residual magnetization in the worst direction, it can briefly saturate and draw several times its rated current.

• Common ways to tame inrush:
  • NTC thermistors in series – simple and cheap, but watch continuous dissipation.
  • Timed relay/triac bypass – series resistor at turn-on, then shorted after a delay.
  • Zero-cross or phase-controlled switching – smart control so the transformer energizes at a favorable point in the AC waveform.
  • Overspec’d fuses / slow-blow types – helpful, but don’t rely solely on this if inrush is massive.

A toroidal design that ignores inrush is like a high-performance sports car on cheap tires—it might technically “work,” but it’s going to cause you trouble in the real world.

10. Mechanical & Layout Tips (The Stuff You Learn the Hard Way)

Beyond the datasheet, there are some very human, hands-on lessons about using toroidal transformers:

• Keep low-level analog and RF circuitry away from the transformer, even if the stray field is low. Put the toroid near the edge of the board or in its own corner of the chassis.
• Rotate the transformer slightly while measuring hum in the circuit—because of how the field couples, a 10–20° rotation can sometimes noticeably change noise pickup.
• Don’t underestimate mounting hardware: rubber pads, insulating washers, and proper compression can reduce mechanical vibration and buzz.
• If you’re designing the enclosure, think through airflow paths; toroids can run hot if boxed in with poor ventilation.
• Quick layout habits that pay off:
  • Use twisted pairs for primary and secondary leads where possible.
  • Keep primary and secondary wiring physically and visually distinct.
  • Route sensitive signal traces orthogonally and at distance from the transformer’s leads.

11. When Not to Use a Toroidal Transformer

It’s perfectly okay to decide that a toroid is the wrong tool for the job.

Skip the toroidal hype if:

• Your transformer is very large (tens of kVA or more) and price is king. Laminated or other power-class designs will be standard here.
• Your application can tolerate some hum and leakage, but it absolutely cannot tolerate extra cost or sourcing complexity.
• You need extremely complex winding structures, multiple separate chambers, or unusual mechanical forms that are more practical with conventional bobbins.
• You’re in rugged, dirty environments (think big industrial equipment) where serviceability and field replacement matter more than absolute efficiency or noise.
• Short version:
  • Use toroids where performance and compactness matter.
  • Use E-I where cost, brute power, or rugged simplicity dominate.

12. Rapid-Fire FAQ

Let’s clear up a few common questions that engineers and hobbyists keep asking.

Q: Are toroidal transformers always better than E-I? A: No. They’re better for compact, low-noise, high-efficiency designs up to a few kVA. Above that, or when cost and simplicity dominate, E-I is very often the better choice.

Q: Can I just drop-in replace an E-I transformer with a toroid? A: Electrically, maybe—if the VA and voltages match. But consider:

• Inrush current (fuses, relays, breakers may need changing).
• Mounting (you may need a new bracket or hole).
• Stray fields may improve, but lead dress and grounding might also need tweaks.

Q: Why do my toroids feel “too hot” even within spec? A: High efficiency doesn’t mean “cold.” It means less wasted power, but that waste is still real heat in a smaller volume. Check:

• Ambient temperature.
• Continuous vs. intermittent load.
• Ventilation and mounting pressure (over-tightening can affect cooling).

Q: Can I run a toroidal transformer at higher frequency to shrink it? A: Only if it’s designed for that frequency. Standard mains toroids expect 50/60 Hz; push them higher and you’ll hit core losses and heating issues fast. High-frequency toroids use different materials (e.g., ferrites or special powder cores) explicitly optimized for that regime.

13. Wrapping Up: How to Think About Toroidal Transformers

If you remember nothing else, remember this mental model:

Toroids trade manufacturing complexity and cost for cleaner magnetics, better efficiency, and a more compact footprint.

In designs where noise, efficiency, and space are all on the critical-to-quality list—audio gear, medical instruments, high-end lab kit, compact inverters—toroidal transformers often pay for themselves many times over in performance and reliability.

In designs where brute power and cost dominate, a well-designed E-I transformer is still a perfectly modern, respectable choice.
